657-1485-303F

Active

DIALIGHT

PMI, FLAT, RGB, 10-30VDC

Search across all available documentation for this part.

Active

DIALIGHT

PMI, FLAT, RGB, 10-30VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

PMI, FLAT, GRY, 10-30VDC

Part	Ingress Protection	Panel Cutout Shape	Voltage [Max]	Voltage [Min]	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Type	Lens Size [diameter]	Lens Color	Ratings	Lens Transparency	Millicandela Rating	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
DIALIGHT 657-1495-303F	IP67, NEMA 4X	Round	30 V	10 V	17.46 mm	0.69 in	Green, Red, Yellow	LED	16.5 mm Dia	White	DC	Diffused	270 mcd, 310 mcd, 515 mcd
DIALIGHT 657-1485-303F	IP67, NEMA 4X	Round	30 V	10 V	17.46 mm	0.69 in	Blue, Green, Red	LED	16.5 mm Dia	White	DC	Diffused		90 mcd	270 mcd	515 mcd
DIALIGHT 657-1415-303F	IP67, NEMA 4X	Round	30 V	10 V	17.46 mm	0.69 in	Green, Red	LED	16.5 mm Dia	White	DC	Diffused	270 mcd, 515 mcd
DIALIGHT 657-1435-303F	IP67, NEMA 4X	Round	30 V	10 V	17.46 mm	0.69 in	Green, Yellow	LED	16.5 mm Dia	White	DC	Diffused	310 mcd, 515 mcd
DIALIGHT 657-1465-303F	IP67, NEMA 4X	Round	30 V	10 V	17.46 mm	0.69 in	Blue, Green	LED	16.5 mm Dia	White	DC	Diffused	90 mcd, 515 mcd
DIALIGHT 657-1425-303F	IP67, NEMA 4X	Round	30 V	10 V	17.46 mm	0.69 in	Blue, Red	LED	16.5 mm Dia	White	DC	Diffused	90 mcd, 270 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

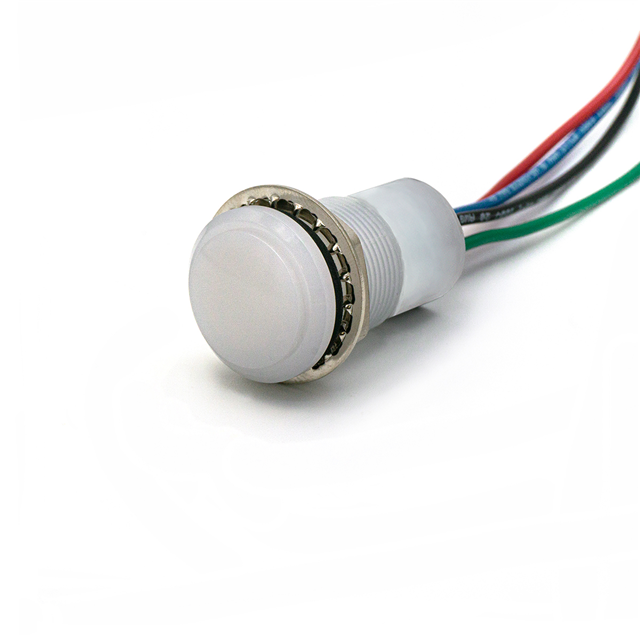

LED Panel Indicator Red, Green, Blue (RGB) Diffused 10V ~ 30V 20mA Wire Leads - 6" (152.40mm)

Technical documentation and resources
