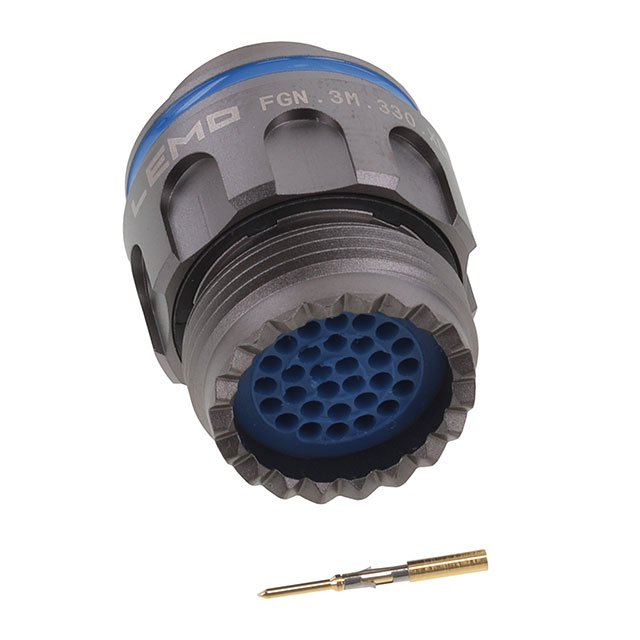

FGN.3M.330.XLCM
ActiveLEMO
CONN PLUG MALE 30POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
FGN.3M.330.XLCM
ActiveLEMO
CONN PLUG MALE 30POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FGN.3M.330.XLCM | FGN.3M Series |
|---|---|---|
| Applications | Military, Aerospace, Automotive, Aviation | Military, Aerospace, Automotive, Aviation |
| Cable Opening | - | 0.591 in |
| Cable Opening | - | 15 mm |
| Color | Gray | Gray |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 3.5 A | 3.5 A |
| Features | Coupling Nut | Coupling Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 30 | 30 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 330 | 330 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
FGN.3M Series
CONN PLUG MALE 30POS GOLD CRIMP
| Part | Shielding | Orientation | Ingress Protection | Shell Material | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Features | Connector Type | Mounting Type | Primary Material | Insert Material | Shell Finish | Shell Size - Insert | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Contact Material | Current Rating (Amps) | Contact Finish - Mating | Color | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO FGN.3M.330.XLCM | Shielded | N | IP68 - Dust Tight, Waterproof | Aluminum Alloy | Aerospace, Automotive, Aviation, Military | -55 °C | 200 °C | Crimp | Coupling Nut | Male Pins, Plug | Free Hanging (In-Line) | Metal | Polyetheretherketone (PEEK) | Nickel | 330 | 1 µm | 39.4 µin | 30 | Brass | 3.5 A | Gold | Gray | ||
LEMO FGN.3M.330.XLCT | Shielded | N | IP68 - Dust Tight, Waterproof | Aluminum Alloy | Aerospace, Automotive, Aviation, Military | -55 °C | 200 °C | Crimp | Coupling Nut | Male Pins, Plug | Free Hanging (In-Line) | Metal | Polyetheretherketone (PEEK) | Nickel | 330 | 1 µm | 39.4 µin | 30 | Brass | 3.5 A | Gold | Gray | 0.591 in | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 138.78 | |
Description
General part information
FGN.3M Series
30 Position Circular Connector Plug, Male Pins Crimp
