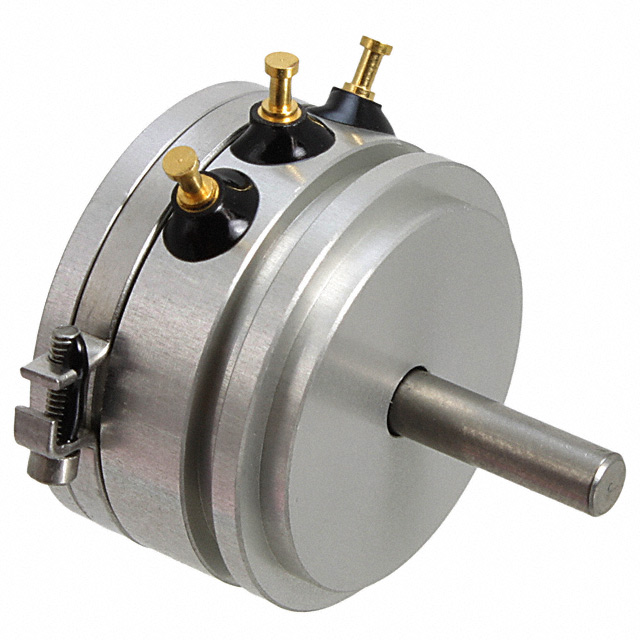

6534S-1-503

Active

Bourns Inc.

PRECISION POT-7/8" 22MM 1 TURN CP /TRAY PACKAGING

Search across all available documentation for this part.

Active

Bourns Inc.

PRECISION POT-7/8" 22MM 1 TURN CP /TRAY PACKAGING

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Temperature Coefficient	Actuator Length [x]	Actuator Length	Adjustment Type	Taper	Power (Watts)	Tolerance	Number of Turns	Number of Gangs	Actuator Type	Resistance (Ohms)	Termination Style	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Rotation	Resistive Material	Size - Body [diameter]	Size - Body [diameter]
Bourns Inc. 6534S-1-503	Servo Mount	500 ppm/°C	0.5 in	12.7 mm	User Defined	Linear	1 W	10 %	1	1	Round	50 kOhms	Solder Turret	3.17 mm	0.1248 in	Continuous	Conductive Plastic	22.23 mm	0.875 "
Bourns Inc. 6534S-1-502	Servo Mount	500 ppm/°C	0.5 in	12.7 mm	User Defined	Linear	1 W	10 %	1	1	Round	5 kOhms	Solder Turret	3.17 mm	0.1248 in	Continuous	Conductive Plastic	22.23 mm	0.875 "
Bourns Inc. 6534S-1-203	Servo Mount	500 ppm/°C	0.5 in	12.7 mm	User Defined	Linear	1 W	10 %	1	1	Round	20 kOhms	Solder Turret	3.17 mm	0.1248 in	Continuous	Conductive Plastic	22.23 mm	0.875 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 124.68
Newark	Each	50	$ 118.44
		100	$ 115.79

General part information

50k Ohm 1 Gang Linear Servo Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Turret
