TE6-1A-DC-1-PB

Active

Switch Components

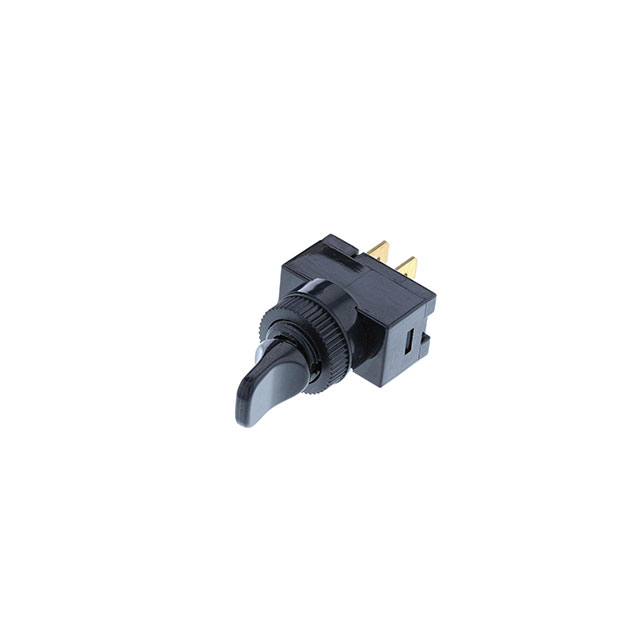

SWITCH TOGGLE SPST 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TE6-1A-DC-1-PB	TE6-1A Series

Actuator Length [x]	17 mm	17 mm
Actuator Material	Polycarbonate (PC)	Polycarbonate (PC)
Actuator Type	Flatted	Flatted
Bushing Thread	M12	M12
Bushing Thread	1 x 1	1 x 1
Circuit	SPST	SPST
Current Rating (Amps)	20 A	20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination	Non-Illuminated	Illuminated, Non-Illuminated
Illumination Type, Color	-	Red, LED, Green, Blue, Amber
Illumination Voltage (Nominal)	-	12 VDC
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH TOGGLE SPST 20A 12V

Part	Termination Style	Electrical Life	Bushing Thread	Bushing Thread	Actuator Length [x]	Illumination Type, Color	Current Rating (Amps)	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Material	Illumination Voltage (Nominal)	Actuator Type	Illumination	Panel Cutout Dimensions [diameter]	Voltage Rating - DC
Switch Components TE6-1A-DC-1-RL	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm	LED, Red	20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)	12 VDC	Flatted	Illuminated	12.2 mm	12 V
Switch Components TE6-1A-DC-1-GL	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm	Green, LED	20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)	12 VDC	Flatted	Illuminated	12.2 mm	12 V
Switch Components TE6-1A-DC-1-PB	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm		20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)		Flatted	Non-Illuminated	12.2 mm	12 V
Switch Components TE6-1A-DC-1-UL	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm	Blue, LED	20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)	12 VDC	Flatted	Illuminated	12.2 mm	12 V
Switch Components TE6-1A-DC-1-AL	Quick Connect - 0.250" (6.3mm)	6000 Cycles	M12	1 x 1	17 mm	Amber, LED	20 A	On-Off	-25 °C	85 °C	SPST	Polycarbonate (PC)	12 VDC	Flatted	Illuminated	12.2 mm	12 V
