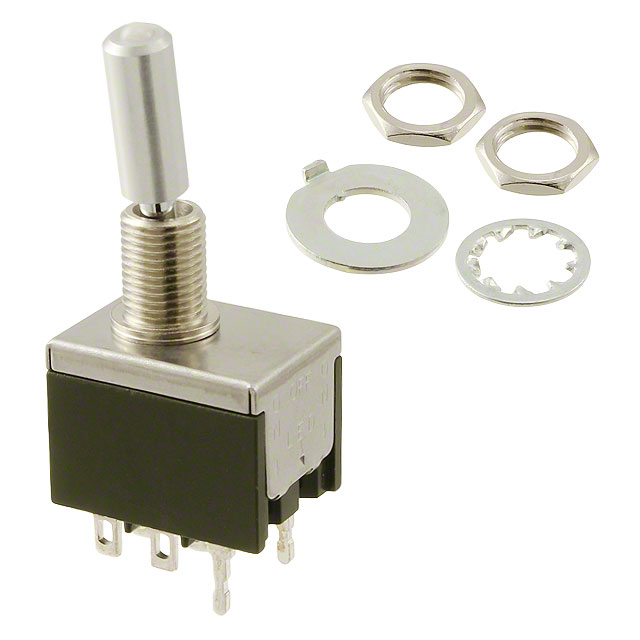

M2123LCFW01

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2123LCFW01

Actuator Length [x]	14.7 mm
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Illuminated
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	1.7 VDC, 2 VDC
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Panel Cutout Dimensions [diameter]	Features	Electrical Life	Bushing Thread	Voltage Rating - AC	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Voltage Rating - DC	Termination Style	Actuator Type	Illumination	Illumination Type, Color	Illumination Voltage (Nominal)	Switch Function	Current Rating (Amps)	Circuit	Actuator Length [x]
NKK Switches M2123LCFW01	6.5 mm	Epoxy Sealed Terminals	25000 Steps	1/4-40	125 V	55 °C	-10 °C	30 V	Solder Lug	Standard Round	Illuminated	Green/Red LED	1.7 VDC 2 VDC	On-Off-On	3 A 6 A	DPDT	14.7 mm
NKK Switches M2123LCFG03	6.5 mm	Epoxy Sealed Terminals	25000 Steps	1/4-40	28 V	55 °C	-10 °C	28 V	PC Pin	Standard Round	Illuminated	Green/Red LED	1.7 VDC 2 VDC	On-Off-On	0.4 VA	DPDT	14.7 mm
