TMM-148-03-T-S

Active

Samtec Inc.

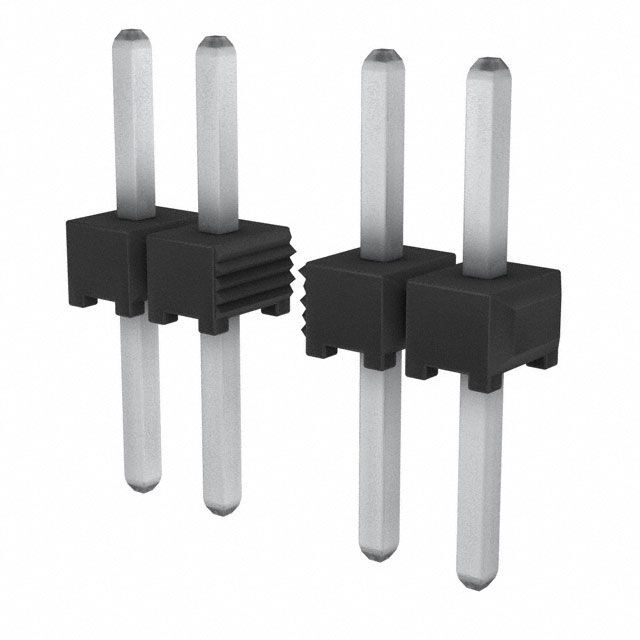

CONN UNSHROUDED HEADER HDR 48 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MMS/TW/TMM Product Specification

TMM-148-03-T-S

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 48 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsDatasheet MMS/TW/TMM Product Specification

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMM-148-03-T-S

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post [x]	0.106 in
Contact Length - Post [x]	2.69 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.2 mm
Overall Contact Length	0.323 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TMM-148 Series

Part	Number of Rows	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Current Rating (Amps)	Number of Positions	Style	Contact Finish - Post	Contact Type	Number of Positions Loaded	Fastening Type	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Insulation Color	Shrouding	Termination	Mounting Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Shape	Contact Finish - Mating	Overall Contact Length	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating
Samtec Inc. TMM-148-01-T-S	1	Phosphor Bronze	105 ░C	-55 °C	Liquid Crystal Polymer (LCP)	3.2 A	48	Board to Board Cable	Tin	Male Pin	All	Push-Pull	3.2 mm	0.126 "	8.2 mm	0.323 in	0.079 in	2 mm	Header	Black	Unshrouded	Solder	Through Hole	1.5 mm	0.059 "	3.5 mm	0.138 in	Square
Samtec Inc. TMM-148-05-F-Q		Phosphor Bronze	125 °C	-55 °C	Liquid Crystal Polymer (LCP)	3.2 A	192	Board to Board Cable	Tin	Male Pin	All	Push-Pull	1.65 mm	0.065 in		5.43 mm	0.079 in	2 mm	Header	Black	Unshrouded	Solder	Through Hole	1.5 mm	0.059 "	2.29 mm	0.09 "	Square	Gold	0.214 in	0.079 in	2 mm	3 µin	0.076 µm
Samtec Inc. TMM-148-01-T-D	2	Phosphor Bronze	105 ░C	-55 °C	Liquid Crystal Polymer (LCP)	3.2 A	96	Board to Board Cable	Tin	Male Pin	All	Push-Pull	3.2 mm	0.126 "	8.2 mm	0.323 in	0.079 in	2 mm	Header	Black	Unshrouded	Solder	Through Hole	1.5 mm	0.059 "	3.5 mm	0.138 in	Square			0.079 in	2 mm
Samtec Inc. TMM-148-01-G-S	1	Phosphor Bronze	125 °C	-55 °C	Liquid Crystal Polymer (LCP)	3.2 A	48	Board to Board Cable	Gold	Male Pin	All	Push-Pull	3.2 mm	0.126 "	8.2 mm	0.323 in	0.079 in	2 mm	Header	Black	Unshrouded	Solder	Through Hole	1.5 mm	0.059 "	3.5 mm	0.138 in	Square	Gold				20 µin	0.51 µm	3 µin	0.076 µm
Samtec Inc. TMM-148-01-S-D	2	Phosphor Bronze	125 °C	-55 °C	Liquid Crystal Polymer (LCP)	3.2 A	96	Board to Board Cable	Tin	Male Pin	All	Push-Pull	3.2 mm	0.126 "	8.2 mm	0.323 in	0.079 in	2 mm	Header	Black	Unshrouded	Solder	Through Hole	1.5 mm	0.059 "	3.5 mm	0.138 in	Square	Gold		0.079 in	2 mm	30 Áin	0.76 Ám
Samtec Inc. TMM-148-04-S-D	2	Phosphor Bronze	125 °C	-55 °C	Liquid Crystal Polymer (LCP)	3.2 A	96	Board to Board Cable	Tin	Male Pin	All	Push-Pull				5.69 mm	0.079 in	2 mm	Header	Black	Unshrouded	Solder	Through Hole	1.5 mm	0.059 "	2.29 mm	0.09 "	Square	Gold	0.224 in	0.079 in	2 mm	30 Áin	0.76 Ám			1.9 mm	0.075 in
Samtec Inc. TMM-148-03-T-S	1	Phosphor Bronze	105 ░C	-55 °C	Liquid Crystal Polymer (LCP)	3.2 A	48	Board to Board Cable	Tin	Male Pin	All	Push-Pull	4 mm	0.157 in	8.2 mm	0.323 in	0.079 in	2 mm	Header	Black	Unshrouded	Solder	Through Hole	1.5 mm	0.059 "			Square											0.106 in	2.69 mm
Samtec Inc. TMM-148-01-G-D-RA	2	Phosphor Bronze	125 °C	-55 °C	Liquid Crystal Polymer (LCP)	3.2 A	96	Board to Board Cable	Gold	Male Pin	All	Push-Pull	3.2 mm	0.126 "			0.079 in	2 mm	Header	Black	Unshrouded	Solder	Through Hole Right Angle	3.94 mm	0.155 in			Square	Gold		0.079 in	2 mm	20 µin	0.51 µm	3 µin	0.076 µm			0.12 in	3.05 mm
Samtec Inc. TMM-148-03-G-S	1	Phosphor Bronze	125 °C	-55 °C	Liquid Crystal Polymer (LCP)	3.2 A	48	Board to Board Cable	Gold	Male Pin	All	Push-Pull	4 mm	0.157 in	8.2 mm	0.323 in	0.079 in	2 mm	Header	Black	Unshrouded	Solder	Through Hole	1.5 mm	0.059 "			Square	Gold				20 µin	0.51 µm	3 µin	0.076 µm			0.106 in	2.69 mm
Samtec Inc. TMM-148-01-G-S-SM	1	Phosphor Bronze	125 °C	-55 °C	Liquid Crystal Polymer (LCP)	3.2 A	48	Board to Board Cable	Gold	Male Pin	All	Push-Pull	3.2 mm	0.126 "			0.079 in	2 mm	Header	Black	Unshrouded	Solder	Surface Mount	1.5 mm	0.059 "			Square	Gold				20 µin	0.51 µm	3 µin	0.076 µm					UL94 V-0
