3169-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

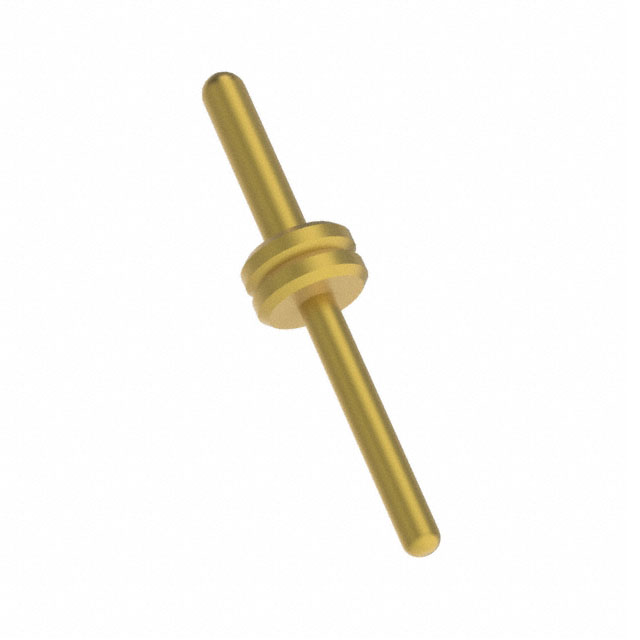

DOUBLE TAIL HEADER PIN
Deep-Dive with AI
Search across all available documentation for this part.
3169-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
DOUBLE TAIL HEADER PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3169-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.42 mm |
| Flange Diameter [diameter] | 0.056 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 2.54 mm |
| Length - Above Flange [x] | 0.1 in |
| Length - Below Flange [x] | 3.35 mm |
| Length - Below Flange [x] | 0.132 in |
| Length - Overall [x] | 6.65 mm |
| Length - Overall [x] | 0.262 " |
| Mounting Type | Through Hole |
| Pin Size - Below Flange [diameter] | 0.46 mm |
| Pin Size - Below Flange [diameter] | 0.018 " |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.57 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.45 | |||
| 50 | $ 0.43 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.31 | |||
Description
General part information
3169-0 Series
PC Pin Terminal Connector Through Hole Gold 0.022" (0.56mm) Dia
