R124510000

Active

Radiall USA, Inc.

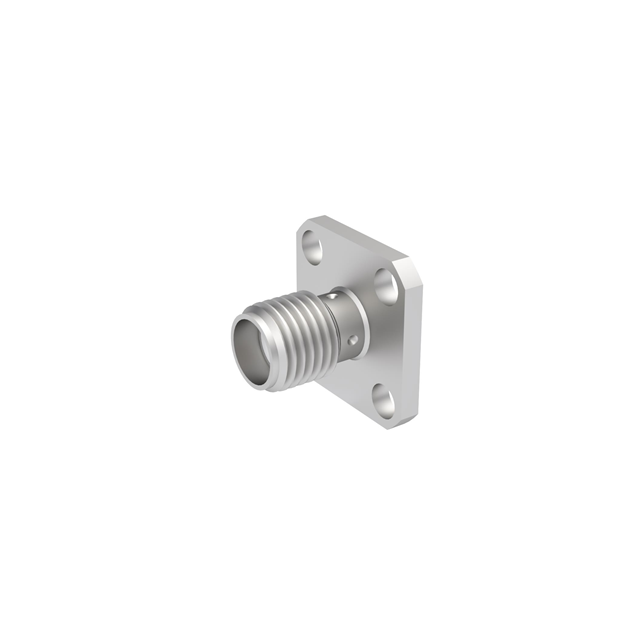

SMA / SQUARE FLANGE JACK RECEPTA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / SQUARE FLANGE JACK RECEPTA

Technical Specifications

Parameters and characteristics for this part

Specification	R124510000

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder Tab
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Mounting Feature	Voltage Rating	Connector Type	Center Contact Material	Dielectric Material	Impedance	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Housing Color	Number of Ports	Shield Termination	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Mounting Type	Body Finish
Radiall USA, Inc. R124510000	Flange	500 V	Female Socket Jack	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	SMA	-65 ░C	165 °C	Brass	Silver	1	Solder	18 GHz	Solder Tab	Gold	Panel Mount Through Hole	White Bronze
Radiall USA, Inc. R124510000W	Flange	500 V	Female Socket Jack	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	SMA	-65 ░C	165 °C	Brass	Silver	1	Solder	18 GHz	Solder Tab	Gold	Panel Mount Through Hole	White Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.50

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder Tab
