AZ40029

Obsolete

Panasonic Industrial Automation Sales

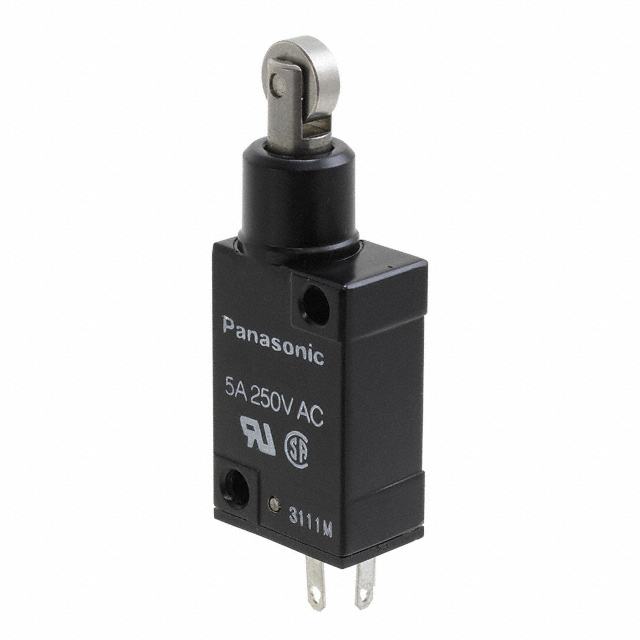

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	AZ40029

Actuator Type	Roller Plunger
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.15 mm
Differential Travel	0.006 in
Electrical Life	300000 Cycles
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	700 gf
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Overtravel	4 mm
Overtravel	0.158 in
Pretravel	0.04 in
Pretravel	1 mm
Release Force	70 gf
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Electrical Life	Current Rating (Amps)	Pretravel	Pretravel	Circuit	Termination Style	Termination Style	Termination Style	Overtravel	Overtravel	Ingress Protection	Voltage Rating - DC	Mounting Type	Voltage Rating - AC	Actuator Type	Operating Force	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Differential Travel	Differential Travel	Mechanical Life	Release Force
Panasonic Industrial Automation Sales AZ40029	300000 Cycles	5 A	0.04 in	1 mm	SPDT	0.11 in	Quick Connect Solder	2.8 mm	4 mm	0.158 in	IP64 - Dust Tight Water Resistant	30 V	Chassis Mount	125 V	Roller Plunger	700 gf	On-Mom	-20 C	60 °C	0.15 mm	0.006 in	10000000 Cycles	70 gf
