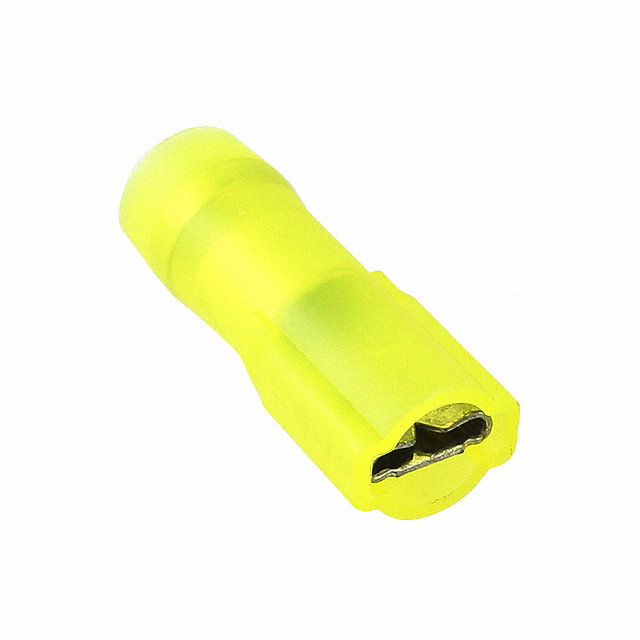

73F-250-32-NBL

Active

3M (TC)

12-10 AWG FULLY NYLON INSULATED W/INSULATION GRIP FEMALE DISCO

Search across all available documentation for this part.

Active

3M (TC)

12-10 AWG FULLY NYLON INSULATED W/INSULATION GRIP FEMALE DISCO

Technical Specifications

Parameters and characteristics for this part

Part	Insulation	Length - Overall [x]	Length - Overall [x]	Tab Width	Tab Width	Termination	Mounting Type	Features	Gender	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter	Insulation Diameter	Terminal Type	Color	Contact Material	Contact Finish
3M (TC) 73F-375-50-P	Non-Mating End Insulated	31.24 mm	1.23 in	0.375 in	9.53 mm	Crimp	Free Hanging (In-Line)	Butted Seam	Female	1.27 mm	0.05 "	12 AWG	10 AWG	0.25 "	6.35 mm	Standard	Yellow
3M (TC) 73F-250-32	Non-Insulated	16 mm	0.63 "	0.25 in	6.35 mm	Crimp	Free Hanging (In-Line)	Butted Seam	Female	0.81 mm	0.032 in	12 AWG	10 AWG			Standard		Brass	Tin
3M (TC) 73F-250-32-NBL	Fully Insulated			0.25 in	6.35 mm	Crimp	Free Hanging (In-Line)		Female	0.81 mm	0.032 in	12 AWG	10 AWG	0.25 "	6.35 mm	Standard	Yellow	Brass	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector Fully Insulated
