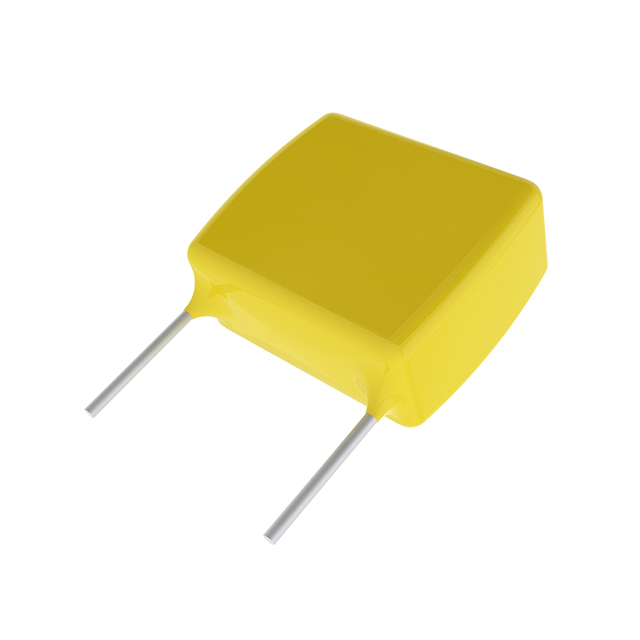

C326C155M5N5TA9170

Active

KEMET

CAP CER 1.5UF 50V X8L RADIAL

C326C155M5N5TA9170

Active

KEMET

CAP CER 1.5UF 50V X8L RADIAL

Description Specifications Series Pricing CAD Documents

Description

General part information

C326C Series

1.5 µF ±20% 50V Ceramic Capacitor X8L Radial

Technical Specifications

Parameters and characteristics for this part

Specification	C326C155M5N5TA9170

Applications	Automotive
Capacitance	1.5 µF
Features	High Temperature
Height - Seated (Max)	0.3 in
Lead Spacing	0.1 in
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension Length	0.2 in
Size / Dimension Width	0.125 in
Temperature Coefficient	X8L
Tolerance	20 %
Voltage - Rated	50 V

C326C Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Width	Voltage - Rated	Tolerance	Features	Height - Seated (Max)	Capacitance	Mounting Type	Package / Case	Lead Style	Applications	Lead Spacing	Temperature Coefficient	Ratings
KEMET C326C479D3G5TA7301	125 °C	-55 °C	0.2 in	0.125 in	25 VAC	0.5 pF	Low ESL	0.3 in	4.7 pF	Through Hole	Radial	Formed Leads - Kinked	General Purpose	0.1 in	C0G NP0
KEMET C326C104K5R5TA	125 °C	-55 °C	0.2 in	0.125 in	50 V	10 %		0.3 in	0.1 µF	Through Hole	Radial	Formed Leads - Kinked	General Purpose	0.1 in	X7R
KEMET C326C300GAG5TA	125 °C	-55 °C	0.2 in	0.125 in	250 V	2 %	Low ESL	0.3 in	30 pF	Through Hole	Radial	Formed Leads - Kinked	General Purpose	0.1 in	C0G NP0
KEMET C326C752F2G5TA	125 °C	-55 °C	0.2 in	0.125 in	200 VDC	1 %	Low ESL	0.3 in	7500 pF	Through Hole	Radial	Formed Leads - Kinked	General Purpose	0.1 in	C0G NP0
KEMET C326C155M5N5TA9170	150 °C	-55 °C	0.2 in	0.125 in	50 V	20 %	High Temperature	0.3 in	1.5 µF	Through Hole	Radial	Formed Leads - Kinked	Automotive	0.1 in	X8L	AEC-Q200
KEMET C326C123JAG5TA	125 °C	-55 °C	0.2 in	0.125 in	250 V	5 %	Low ESL	0.3 in	0.012 µF	Through Hole	Radial	Formed Leads - Kinked	General Purpose	0.1 in	C0G NP0
KEMET C326C119C3G5TA7301	125 °C	-55 °C	0.2 in	0.125 in	25 VAC	0.25 pF	Low ESL	0.3 in	1.1 pF	Through Hole	Radial	Formed Leads - Kinked	General Purpose	0.1 in	C0G NP0
KEMET C326C123K3G5TA7301	125 °C	-55 °C	0.2 in	0.125 in	25 VAC	10 %	Low ESL	0.3 in	0.012 µF	Through Hole	Radial	Formed Leads - Kinked	General Purpose	0.1 in	C0G NP0
KEMET C326C270FAG5TA	125 °C	-55 °C	0.2 in	0.125 in	250 V	1 %	Low ESL	0.3 in	27 pF	Through Hole	Radial	Formed Leads - Kinked	General Purpose	0.1 in	C0G NP0
KEMET C326C393K1G5TA7301	125 °C	-55 °C	0.2 in	0.125 in	100 VAC/DC	10 %	Low ESL	0.3 in	0.039 µF	Through Hole	Radial	Formed Leads - Kinked	General Purpose	0.1 in	C0G NP0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

C326C155M5N5TA9170 Spec

C326C155M5N5TA9170 | Datasheet
