974-015-020R121
ActiveMH Connectors
D SUB BACKSHELL, ARMOR 974 SERIES, DA, 40°, ABS (ACRYLONITRILE BUTADIENE STYRENE) BODY
Deep-Dive with AI
Search across all available documentation for this part.
974-015-020R121
ActiveMH Connectors
D SUB BACKSHELL, ARMOR 974 SERIES, DA, 40°, ABS (ACRYLONITRILE BUTADIENE STYRENE) BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 974-015-020R121 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 40 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | 15pos, HD26pos |
| Compatible Shell Size | A |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Strain Relief |
| Material | Plastic, Metallized |
| Number of Positions | 15 |
| Plating | Nickel over Copper |
| Primary Material | Plastic |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
974-015 Series

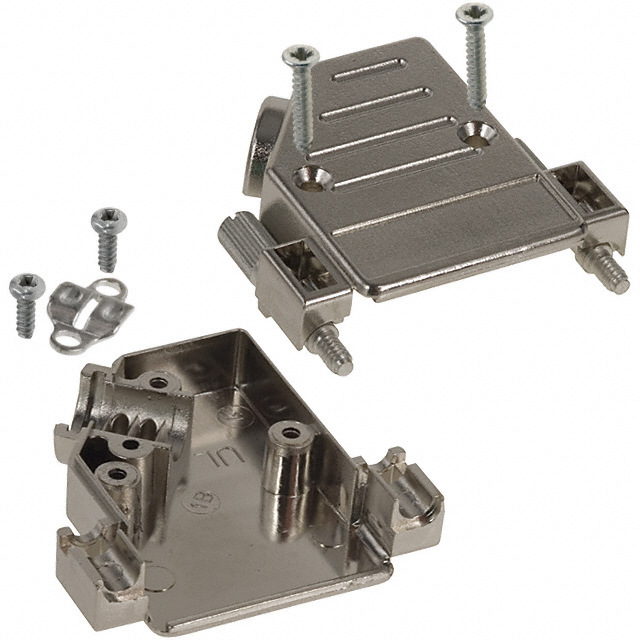

The 974-015-020R121 from Norcomp is a 974 series metalized plastic 40° entry D-sub backshell in 15 position. The 40°C entry and low profile design allow use in racking applications where space is a premium. It has perimeter sealing clips for secure sealing.
