SC-30 Series

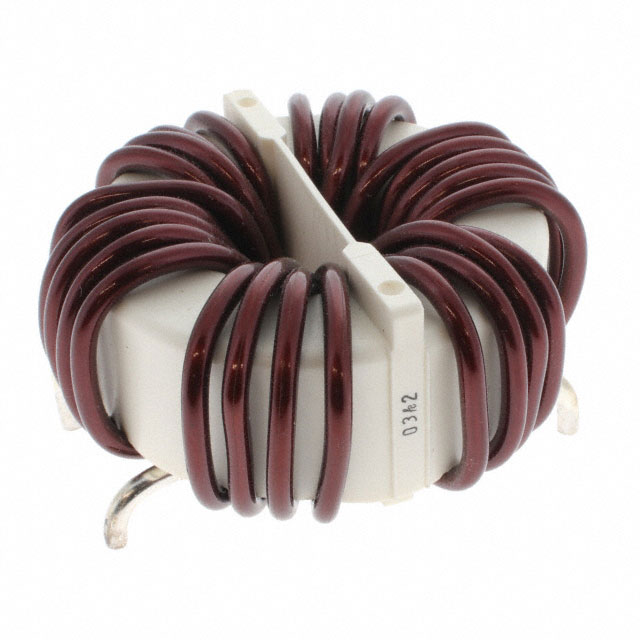

1 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 30A DCR 6mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | SC-30-E100 |
|---|---|
| Current Rating (Max) | 30 A |
| DC Resistance (DCR) (Max) | 6 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.378 in |
| Inductance | 1 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Base, 4 PC Pin, Horizontal |
| Package Name | No Base, Horizontal |
| Pad Count | 4 PC Pin |
| Size / Dimension Diameter | 2.48 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 VDC |
