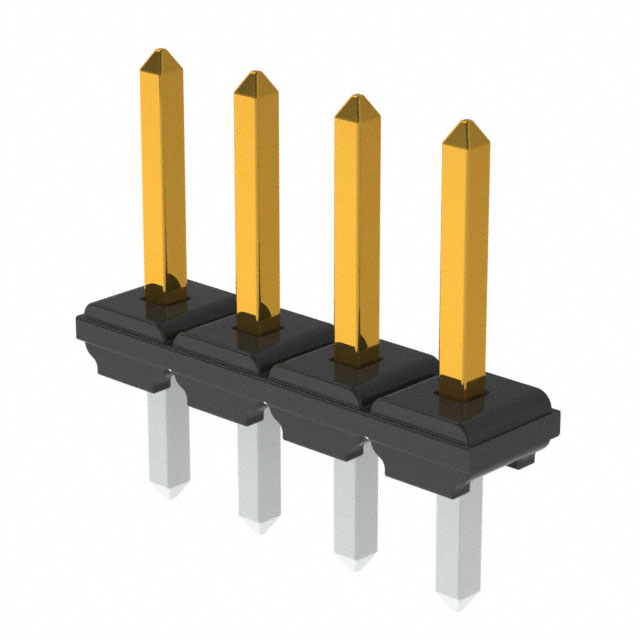

XJ8B-0411

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 4POS 2.54MM

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 4POS 2.54MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.100" (2.54mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	XJ8B-0411	XJ8B Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	0.15 µm	0.15 µm
Contact Finish Thickness - Mating	5.9 µin	5.9 µin
Contact Length - Mating [x]	4.3 mm	4.3 mm
Contact Length - Mating [x]	0.169 in	0.169 in
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Brass, Nickel	Brass, Nickel
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	1.5 mm	1.5 mm
Insulation Height	0.059 "	0.059 "
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	4	4
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	8.6 mm	8.6 mm
Overall Contact Length	0.339 in	0.339 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC

CONN HEADER VERT 16POS 2.54MM

Part	Contact Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Insulation Height	Insulation Height	Voltage Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Material	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post	Style	Mounting Type	Contact Shape	Termination	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Color	Number of Rows	Shrouding	Current Rating (Amps)	Number of Positions
Omron Electronics Inc-EMC Div XJ8B-1611	Brass, Nickel	Male Pin	0.15 µm	5.9 µin	16	1.5 mm	0.059 "	300 VDC	4.3 mm	0.169 in	105 ░C	-55 °C	Header	Gold	0.1 in	2.54 mm	Push-Pull	Polyphenylene Sulfide (PPS), Glass Filled	All	0.11 in	2.79 mm	Board to Board, Cable	Through Hole	Square	Solder	8.6 mm	0.339 in	UL94 V-0	Black	1	Unshrouded	2 A
Omron Electronics Inc-EMC Div XJ8B-0411	Brass, Nickel	Male Pin	0.15 µm	5.9 µin		1.5 mm	0.059 "	300 VDC	4.3 mm	0.169 in	105 ░C	-55 °C	Header	Gold	0.1 in	2.54 mm	Push-Pull	Polyphenylene Sulfide (PPS), Glass Filled	All	0.11 in	2.79 mm	Board to Board, Cable	Through Hole	Square	Solder	8.6 mm	0.339 in	UL94 V-0	Black	1	Unshrouded	2 A	4
