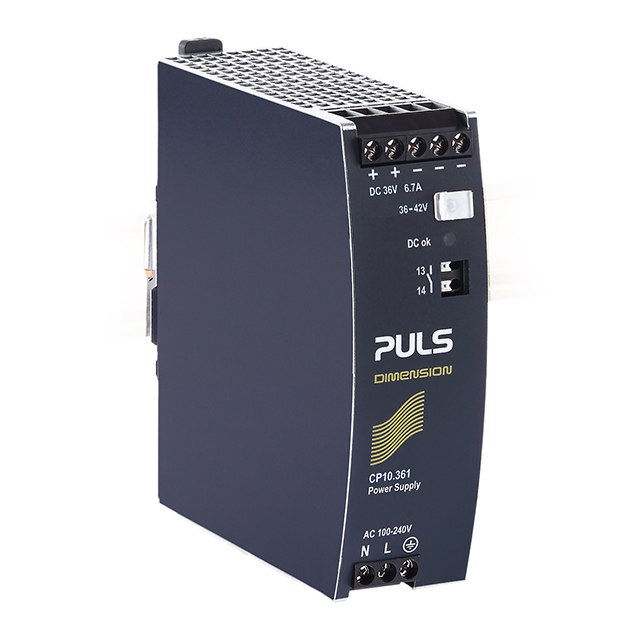

CP10.361 - DIMENSION CP Series

CP10.361

Active
PULS, LP

AC/DC DIN RAIL SUPPLY 36V 240W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
CP10.361 - DIMENSION CP Series

CP10.361

Active
PULS, LP

AC/DC DIN RAIL SUPPLY 36V 240W

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationCP10.361CP10 Series
AC Voltage - Input [Max]240 VAC240 - 264 VAC
AC Voltage - Input [Min]100 VAC85 - 100 VAC
ApplicationsITE (Commercial), Hazardous LocationsITE (Commercial), Hazardous Locations, Laboratory, Industrial
Approval AgencyUL, CSA, EAC, ATEX, ABS, DNV GL, IECEx, IECUL, IEC, DNV GL, EAC, ATEX, IECEx, ABS, CSA, cULus, CE, CB
Current - Output (Max) [Max]6.7 A5.4 - 16 A
DC Voltage - Input (Max)-150 V
DC Voltage - Input (Max)-180 V
DC Voltage - Input (Min)-88 - 110 V
Efficiency95.1 %93.6 - 95.5 %
FeaturesPFC, Adjustable Output, Universal InputPFC, Adjustable Output, Universal Input, Load Sharing, IP20
Input TypeACAC, AC or DC
Number of Outputs11
Operating Temperature [Max]70 °C70 °C
Operating Temperature [Min]-25 °C-25 - -10 °C
Power (Watts)240 W192 - 240 W
Size / Dimension [x]4.61 "4.61 "
Size / Dimension [x]117 mm117 mm
Size / Dimension [y]1.54 "1.54 "
Size / Dimension [y]39 mm39 mm
Size / Dimension [z]4.88 "4.88 "
Size / Dimension [z]124 mm124 mm
Standard Number61010-2-201, 60950-1, 508, Class I Div 261010-2-201, 60950-1, 508, Class I Div 2, ATEX, 61010-1, 62368-1, IECEx, Class I Div 2; 60950-1; 61010-2-201; 62368-1
Voltage - Isolation3000 V500 - 3000 V
Voltage - Output 136 V12 - 48 V

CP10 Series

AC/DC DIN RAIL SUPPLY 24V 240W

PartFeaturesAC Voltage - Input [Min]AC Voltage - Input [Max]ApplicationsVoltage - Output 1Input TypePower (Watts)Voltage - IsolationNumber of OutputsOperating Temperature [Min]Operating Temperature [Max]Size / Dimension [y]Size / Dimension [y]Size / Dimension [z]Size / Dimension [x]Size / Dimension [x]Size / Dimension [z]Current - Output (Max) [Max]Approval AgencyEfficiencyStandard NumberDC Voltage - Input (Min) [Min]DC Voltage - Input (Max) [Max]DC Voltage - Input (Max) [custom]
PULS, LP
CP10.241-S1
Adjustable Output, PFC, Universal Input
85 VAC
264 VAC
Hazardous Locations, ITE (Commercial)
24 V
AC
240 W
3000 V
1
-10 °C
70 °C
1.54 "
39 mm
4.88 "
4.61 "
117 mm
124 mm
10 A
ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL
95.2 %
508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP
CP10.481
Adjustable Output, PFC, Universal Input
90 VAC
264 VAC
Hazardous Locations, ITE (Commercial)
48 V
AC
240 W
3000 V
1
-25 °C
70 °C
1.54 "
39 mm
4.88 "
4.61 "
117 mm
124 mm
5.4 A
ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL
95.5 %
508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP
CP10.361
Adjustable Output, PFC, Universal Input
100 VAC
240 VAC
Hazardous Locations, ITE (Commercial)
36 V
AC
240 W
3000 V
1
-25 °C
70 °C
1.54 "
39 mm
4.88 "
4.61 "
117 mm
124 mm
6.7 A
ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL
95.1 %
508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP
CP10.241-C1
Adjustable Output, PFC, Universal Input
85 VAC
264 VAC
Hazardous Locations, ITE (Commercial)
24 V
AC or DC
240 W
1
-25 °C
70 °C
1.54 "
39 mm
4.88 "
4.61 "
117 mm
124 mm
10 A
ATEX, DNV GL, EAC, IEC, IECEx, UL
95.2 %
508, 60950-1, 61010-2-201, Class I Div 2
110 V
150 V
PULS, LP
CP10.241-R1
Adjustable Output, IP20, Load Sharing, PFC, Universal Input
85 VAC
264 VAC
Hazardous Locations, Industrial, ITE (Commercial), Laboratory
24 V
AC
240 W
500 V
1
-25 °C
70 °C
1.54 "
39 mm
4.88 "
4.61 "
117 mm
124 mm
10 A
CE, cULus, EAC
94.7 %
508, 60950-1, 61010-1, 62368-1, ATEX
PULS, LP
CP10.121
Adjustable Output, PFC, Universal Input
85 VAC
264 VAC
Hazardous Locations, ITE (Commercial)
12 V
AC
192 W
3000 V
1
-25 °C
70 °C
1.54 "
39 mm
4.88 "
4.61 "
117 mm
124 mm
16 A
ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL
94.3 %
508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP
CP10.241
Adjustable Output, PFC, Universal Input
85 VAC
264 VAC
Hazardous Locations, ITE (Commercial)
24 V
AC
240 W
3000 V
1
-25 °C
70 °C
1.54 "
39 mm
4.88 "
4.61 "
117 mm
124 mm
10 A
ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL
95.2 %
508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP
CP10.241-R2-C1
Adjustable Output, PFC, Universal Input
85 VAC
264 VAC
Hazardous Locations, ITE (Commercial), Laboratory
24 V
AC or DC
240 W
500 V
1
-25 °C
70 °C
1.54 "
39 mm
4.88 "
4.61 "
117 mm
124 mm
10 A
CB, CE, cULus, EAC, UL
94.7 %
60950-1, 61010-1, 62368-1, ATEX, IECEx
88 V
180 V
PULS, LP
CP10.242
Adjustable Output, PFC, Universal Input
85 VAC
264 VAC
Hazardous Locations, ITE (Commercial)
24 V
AC
240 W
3000 V
1
-10 °C
70 °C
1.54 "
39 mm
4.88 "
4.61 "
117 mm
124 mm
10 A
ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL
95.2 %
508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP
CP10.241-S2
Adjustable Output, IP20, Load Sharing, PFC, Universal Input
85 VAC
264 VAC
Industrial, ITE (Commercial)
24 V
AC or DC
240 W
500 V
1
-25 °C
70 °C
1.54 "
39 mm
4.88 "
4.61 "
117 mm
124 mm
10 A
ATEX, EAC, IEC, IECEx, UL
93.6 %
Class I Div 2; 60950-1; 61010-2-201; 62368-1
110 V
150 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 360.00

Description

General part information

CP10 Series

AC/DC DIN RAIL SUPPLY 36V 240W

Documents

Technical documentation and resources

Datasheet

Datasheet
