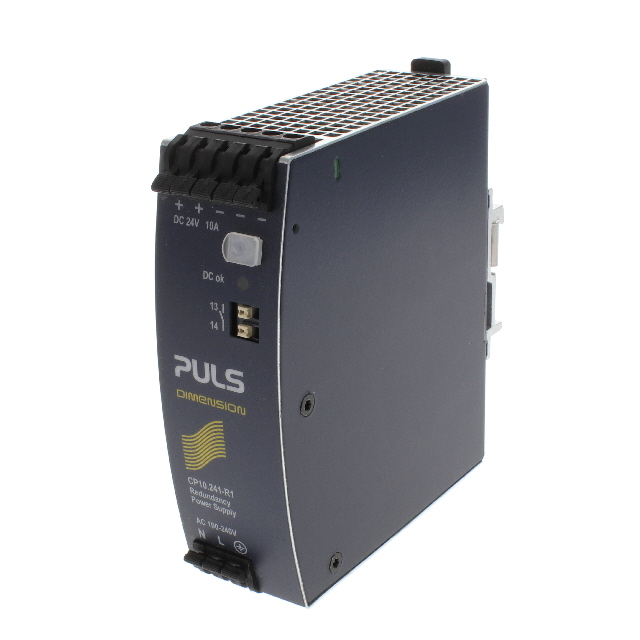

CP10.241-R1

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 240W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CP10.241-R1

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 240W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 414.00

Description

General part information

CP10 Series

AC/DC DIN RAIL SUPPLY 24V 240W

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CP10.241-R1	CP10 Series

AC Voltage - Input [Max]	264 VAC	240 - 264 VAC
AC Voltage - Input [Min]	85 VAC	85 - 100 VAC
Applications	ITE (Commercial), Laboratory, Industrial, Hazardous Locations	ITE (Commercial), Hazardous Locations, Laboratory, Industrial
Approval Agency	cULus, EAC, CE	UL, IEC, DNV GL, EAC, ATEX, IECEx, ABS, CSA, cULus, CE, CB
Current - Output (Max) [Max]	10 A	5.4 - 16 A
DC Voltage - Input (Max)	-	150 V
DC Voltage - Input (Max)	-	180 V
DC Voltage - Input (Min)	-	88 - 110 V
Efficiency	94.7 %	93.6 - 95.5 %
Features	PFC, Universal Input, Load Sharing, Adjustable Output, IP20	PFC, Adjustable Output, Universal Input, Load Sharing, IP20
Input Type	AC	AC, AC or DC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 - -10 °C
Power (Watts)	240 W	192 - 240 W
Size / Dimension [x]	4.61 "	4.61 "
Size / Dimension [x]	117 mm	117 mm
Size / Dimension [y]	1.54 "	1.54 "
Size / Dimension [y]	39 mm	39 mm
Size / Dimension [z]	4.88 "	4.88 "
Size / Dimension [z]	124 mm	124 mm
Standard Number	ATEX, 508, 61010-1, 60950-1, 62368-1	61010-2-201, 60950-1, 508, Class I Div 2, ATEX, 61010-1, 62368-1, IECEx, Class I Div 2; 60950-1; 61010-2-201; 62368-1
Voltage - Isolation	500 V	500 - 3000 V
Voltage - Output 1	24 V	12 - 48 V

CP10 Series

AC/DC DIN RAIL SUPPLY 24V 240W

Part	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Voltage - Output 1	Input Type	Power (Watts)	Voltage - Isolation	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Approval Agency	Efficiency	Standard Number	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Max) [custom]
PULS, LP CP10.241-S1	Adjustable Output, PFC, Universal Input	85 VAC	264 VAC	Hazardous Locations, ITE (Commercial)	24 V	AC	240 W	3000 V	1	-10 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	10 A	ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL	95.2 %	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP CP10.481	Adjustable Output, PFC, Universal Input	90 VAC	264 VAC	Hazardous Locations, ITE (Commercial)	48 V	AC	240 W	3000 V	1	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	5.4 A	ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL	95.5 %	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP CP10.361	Adjustable Output, PFC, Universal Input	100 VAC	240 VAC	Hazardous Locations, ITE (Commercial)	36 V	AC	240 W	3000 V	1	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	6.7 A	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	95.1 %	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP CP10.241-C1	Adjustable Output, PFC, Universal Input	85 VAC	264 VAC	Hazardous Locations, ITE (Commercial)	24 V	AC or DC	240 W		1	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	10 A	ATEX, DNV GL, EAC, IEC, IECEx, UL	95.2 %	508, 60950-1, 61010-2-201, Class I Div 2	110 V	150 V
PULS, LP CP10.241-R1	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	85 VAC	264 VAC	Hazardous Locations, Industrial, ITE (Commercial), Laboratory	24 V	AC	240 W	500 V	1	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	10 A	CE, cULus, EAC	94.7 %	508, 60950-1, 61010-1, 62368-1, ATEX
PULS, LP CP10.121	Adjustable Output, PFC, Universal Input	85 VAC	264 VAC	Hazardous Locations, ITE (Commercial)	12 V	AC	192 W	3000 V	1	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	16 A	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	94.3 %	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP CP10.241	Adjustable Output, PFC, Universal Input	85 VAC	264 VAC	Hazardous Locations, ITE (Commercial)	24 V	AC	240 W	3000 V	1	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	10 A	ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL	95.2 %	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP CP10.241-R2-C1	Adjustable Output, PFC, Universal Input	85 VAC	264 VAC	Hazardous Locations, ITE (Commercial), Laboratory	24 V	AC or DC	240 W	500 V	1	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	10 A	CB, CE, cULus, EAC, UL	94.7 %	60950-1, 61010-1, 62368-1, ATEX, IECEx	88 V		180 V
PULS, LP CP10.242	Adjustable Output, PFC, Universal Input	85 VAC	264 VAC	Hazardous Locations, ITE (Commercial)	24 V	AC	240 W	3000 V	1	-10 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	10 A	ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL	95.2 %	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP CP10.241-S2	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	85 VAC	264 VAC	Industrial, ITE (Commercial)	24 V	AC or DC	240 W	500 V	1	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	10 A	ATEX, EAC, IEC, IECEx, UL	93.6 %	Class I Div 2; 60950-1; 61010-2-201; 62368-1	110 V	150 V
