H1KXH-1636M
ActiveAssmann WSW Components
IDC CBL - HHPK16H/AE16M/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H1KXH-1636M
ActiveAssmann WSW Components
IDC CBL - HHPK16H/AE16M/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H1KXH-1636M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Plug to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Features | Polarizing Key |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.52 | |
| 10 | $ 5.01 | |||
| 25 | $ 4.74 | |||
| 50 | $ 4.63 | |||
| 100 | $ 4.41 | |||
| 250 | $ 3.86 | |||
| 500 | $ 3.75 | |||
| 1000 | $ 3.20 | |||
| 2500 | $ 2.98 | |||
Description
General part information
H1KXH-16 Series

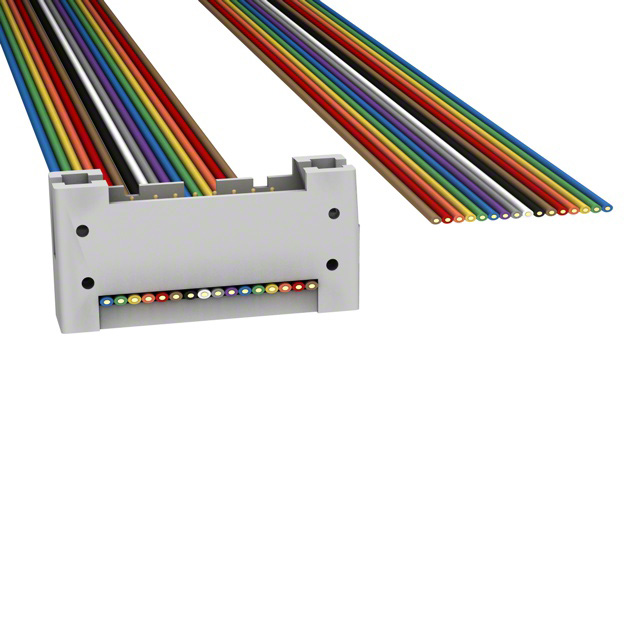

16 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)
