8107 0601000

Active

MULTI-PAIR 14COND 24AWG

Active

MULTI-PAIR 14COND 24AWG

Description

General part information

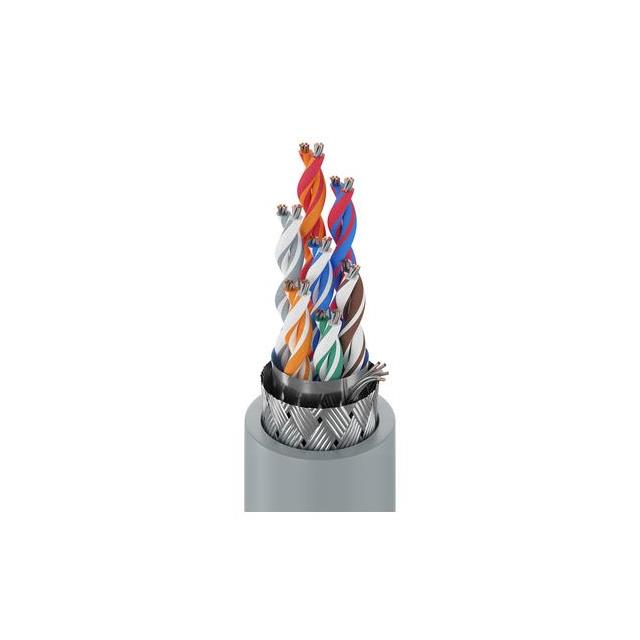

14 (7 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 1000.0' (304.8m)

Parameters and characteristics for this part

Specification	8107 0601000

Cable Type	Multi-Pair
Conductor Arrangement	Twisted
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	32 AWG
Features	Drain Wire
Jacket (Insulation) Diameter	0.341 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Number of Conductors	14
Number of Conductors - Pair	7
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-30 °C
Ratings	2919, UL, Style
Shield Coverage	65%, 100%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Wire Gauge	24 AWG

Part	Conductor Strand Gauge	Conductor Strand Count	Wire Gauge	Jacket (Insulation) Thickness	Number of Conductors - Pair	Conductor Arrangement	Number of Conductors	Jacket (Insulation) Diameter	Conductor Material	Jacket Color	Operating Temperature (Min)	Operating Temperature (Max)	Voltage	Features	Conductor Insulation	Ratings	Jacket (Insulation) Material	Shield Type	Cable Type	Length	Shield Coverage	Shield Material
Belden Inc. 8107 060500	32 AWG	7 Strands	24 AWG	0.035 in	7	Twisted	14	0.341 in	Copper Tinned	Chrome	-30 °C	80 °C	300 V	Drain Wire	Foam Polyethylene (FPE)	2919 Style UL	Poly-Vinyl Chloride (PVC)	Braid Foil	Multi-Pair	500 ft	100% 65%	Aluminum Copper Tinned
Belden Inc. 8107 0601000	32 AWG	7 Strands	24 AWG	0.035 in	7	Twisted	14	0.341 in	Copper Tinned	Chrome	-30 °C	80 °C		Drain Wire	Foam Polyethylene (FPE)	2919 Style UL	Poly-Vinyl Chloride (PVC)	Braid Foil	Multi-Pair	1000 ft	100% 65%	Aluminum Copper Tinned
