CXN0.50SV80

Active

Techflex

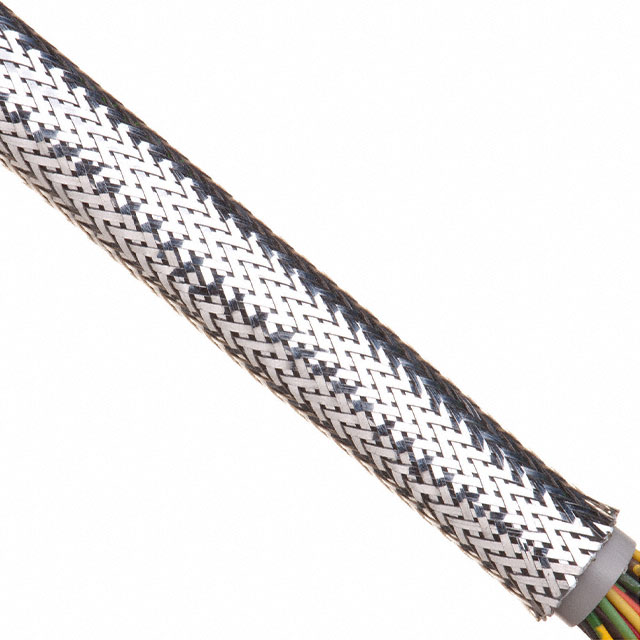

EXPAND SLEEVE 1/2" X 80' SILVER

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVE 1/2" X 80' SILVER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sleeve X 80.00' (24.38m) Silver

Technical documentation and resources

Specification	CXN0.50SV80	CXN0 Series

Abrasion Protection	Abrasion and Cut Resistant	Abrasion and Cut Resistant
Color	Silver	Silver
Diameter - Inside, Expanded [diameter]	0.75 in	0.312 - 0.75 in
Diameter - Inside, Expanded [diameter]	19.05 mm	7.92 - 19.05 mm
Diameter - Inside, Non-Expanded [diameter]	0.5 in	0.5 in
Diameter - Inside, Non-Expanded [diameter]	12.7 mm	12.7 mm
Features	Clean Cut, Chemical Resistant	Clean Cut, Chemical Resistant
Length	80 ft	80 ft
Length	24.38 m	24.38 m
Length	-	500 '
Length	-	152.4 m
Liquid Protection	Gasoline Resistant	Gasoline Resistant
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-70 °C	-70 °C
Type	Sleeve	Sleeve
Type Attributes	Expandable	Expandable

Part	Type Attributes	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Length	Length	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Liquid Protection	Features	Type	Length [x]	Length [x]
Techflex CXN0.50SV80	Expandable	Abrasion and Cut Resistant	0.75 in	19.05 mm	125 °C	-70 °C	Silver	80 ft	24.38 m	0.5 in	12.7 mm	Gasoline Resistant	Chemical Resistant, Clean Cut	Sleeve
Techflex CXN0.25SV500	Expandable	Abrasion and Cut Resistant	0.312 in	7.92 mm	125 °C	-70 °C	Silver					Gasoline Resistant	Chemical Resistant, Clean Cut	Sleeve	500 '	152.4 m
