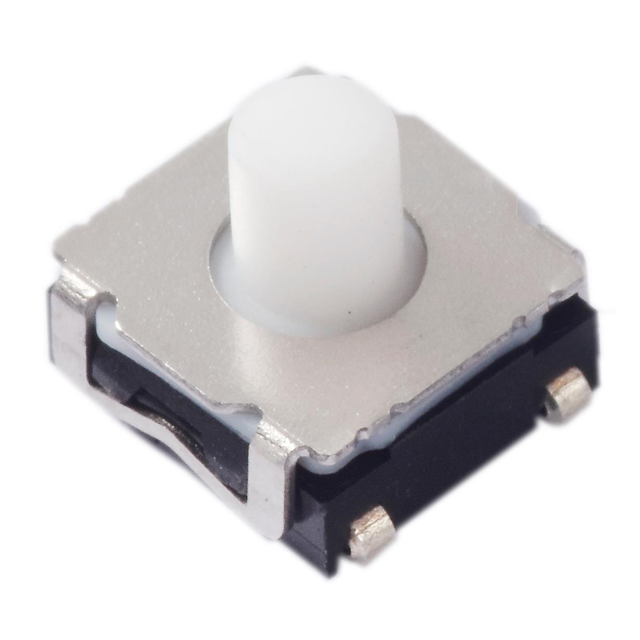

222KJVABR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 32V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 32V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.23

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	222KJVABR	222KJVA Series

Actuator Height off PCB, Vertical	5.2 mm	5.2 mm
Actuator Material	Silicone Rubber	Silicone Rubber
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A	0.05 A
Features	Tactile Feedback	Tactile Feedback
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	5000000 Cycles	300000 - 5000000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	145 gf	145 - 360 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6.2 mm	6.2 mm
Outline [y]	6.2 mm	6.2 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.5 mm	0.5 - 0.7 mm
Switch Travel	-	0.6 mm
Termination Style	J Lead	J Lead

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Circuit	Actuator Type	Mechanical Life	Actuator Material	Actuator Orientation	Switch Travel	Switch Function	Ingress Protection	Termination Style	Operating Force	Features	Illumination	Actuator Height off PCB, Vertical	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Rating @ Voltage	Outline [y]	Outline [x]	Switch Travel [custom]
CTS Electrocomponents 222KJVACR	SPST-NO	Standard	300000 Cycles	Silicone Rubber	Top Actuated	0.7 mm	Off-Mom	IP67 - Dust Tight, Waterproof	J Lead	360 gf	Tactile Feedback	Non-Illuminated	5.2 mm	85 °C	-40 °C	Surface Mount	0.05 A	6.2 mm	6.2 mm
CTS Electrocomponents 222KJVAAR	SPST-NO	Standard	500000 Cycles	Silicone Rubber	Top Actuated		Off-Mom	IP67 - Dust Tight, Waterproof	J Lead	200 gf	Tactile Feedback	Non-Illuminated	5.2 mm	85 °C	-40 °C	Surface Mount	0.05 A	6.2 mm	6.2 mm	0.6 mm
CTS Electrocomponents 222KJVABR	SPST-NO	Standard	5000000 Cycles	Silicone Rubber	Top Actuated	0.5 mm	Off-Mom	IP67 - Dust Tight, Waterproof	J Lead	145 gf	Tactile Feedback	Non-Illuminated	5.2 mm	85 °C	-40 °C	Surface Mount	0.05 A	6.2 mm	6.2 mm
