1-829315-0

Active

TE Connectivity AMP Connectors

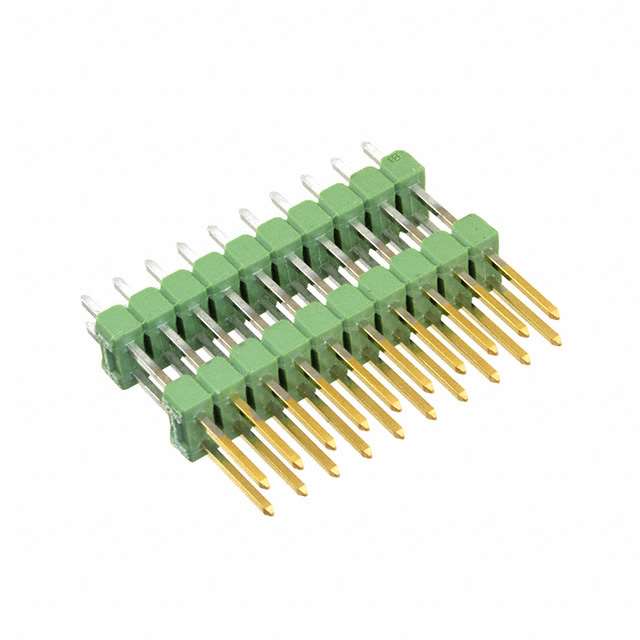

CONN HDR 20POS 0.1 STACK T/H

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HDR 20POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-829315-0	829315 Series

Color	Green	Green
Contact Finish - Post (Mating)	Gold	Gold
Contact Finish Thickness - Post (Mating)	Flash	Flash
Length - Overall Pin [x]	0.866 "	0.866 "
Length - Overall Pin [x]	22 mm	22 mm
Length - Post (Mating) [x]	0.307 in	0.307 in
Length - Post (Mating) [x]	7.8 mm	7.8 mm
Length - Stack Height [x]	11 mm	11 mm
Length - Stack Height [x]	0.433 in	0.433 in
Length - Tail [x]	0.126 in	0.126 in
Length - Tail [x]	3.2 mm	3.2 mm
Mounting Type	Through Hole	Through Hole
Number of Positions	20	20 - 22
Number of Rows	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in
Termination	Solder	Solder

CONN HDR 20POS 0.1 STACK T/H

Part	Number of Positions	Contact Finish Thickness - Post (Mating)	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail [x]	Length - Tail [x]	Termination	Color	Contact Finish - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Row Spacing [x]	Row Spacing
TE Connectivity AMP Connectors 1-829315-0	20	Flash	Through Hole	2.54 mm	0.1 in	2	0.307 in	7.8 mm	11 mm	0.433 in	0.126 in	3.2 mm	Solder	Green	Gold	0.866 "	22 mm	0.1 in	2.54 mm
TE Connectivity AMP Connectors 1-829315-1	22 positions	Flash	Through Hole	2.54 mm	0.1 in	2	0.307 in	7.8 mm	11 mm	0.433 in	0.126 in	3.2 mm	Solder	Green	Gold	0.866 "	22 mm	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
