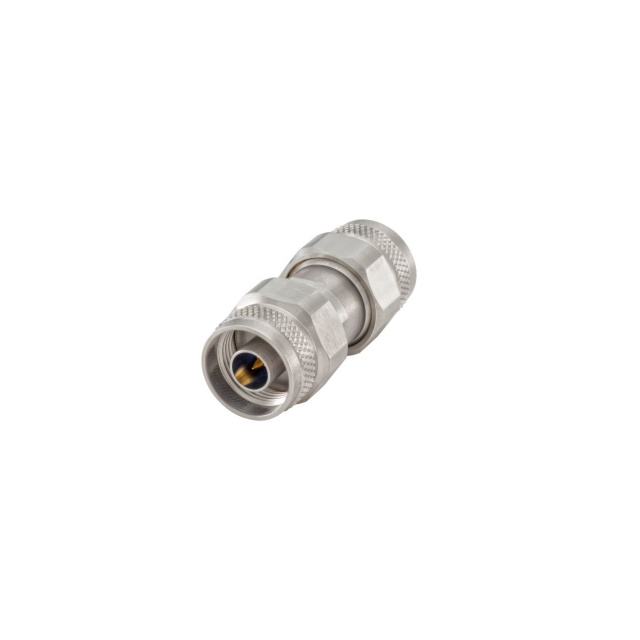

Specification	05S121-S20S3

Accessory Type	Calibration Adapter
Airflow	50 Ohm
Connector Type	N Type
For Use With/Related Products	Network Analyzer
Impedance	50 Ohm
Plug	50 Ohm
Specifications	N Type, Plug
Type	Specialized

05S121 Series

Part	Voltage Rating	Body Material	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Center Contact Plating	Shield Termination	Frequency - Max	Center Contact Material	Impedance	Connector Style	Number of Ports	Contact Termination	Mounting Type	Connector Type	Fastening Type	Specifications	Plug	Airflow	Accessory Type	Type	For Use With/Related Products	Jack Type	Jack Size	Insertion Loss	Convert From (Adapter End)	Adapter Series	Adapter Type	Conversion Type	Center Gender	Style	Convert To (Adapter End) Gender	Convert To (Adapter End) Type
Rosenberger 05S121-272S3	335 V	Stainless Steel	Polyphenylene Ether (PPE)	-40 °C	85 °C	500 cycles	Gold	Solder	18 GHz	Beryllium Copper	50 Ohm	N Type	1	Solder	Free Hanging (In-Line)	Male Pin Plug	Push-Pull
Rosenberger 05S121-S20S3											50 Ohm					N Type		N Type Plug	50 Ohm	50 Ohm	Calibration Adapter	Specialized	Network Analyzer
Rosenberger 05S121-K20S3											50 Ohm					N Type		N Type 50Ohm Jack Plug			Calibration Adapter	Specialized	Network Analyzer	N Type	50 Ohm
Rosenberger 05S121-S00S3		Stainless Steel	Polyphenylene Ether (PPE)	-40 °C	85 °C	500 cycles	Gold		18 GHz	Beryllium Copper Brass	50 Ohm				Free Hanging (In-Line)		Threaded									0.21 dB	Male Pin N Plug	RJC-N to RJC-N	Plug to Plug	Same Series	Male	Straight	Male Pin	SL Plug
