R184018007

Radiall USA, Inc.

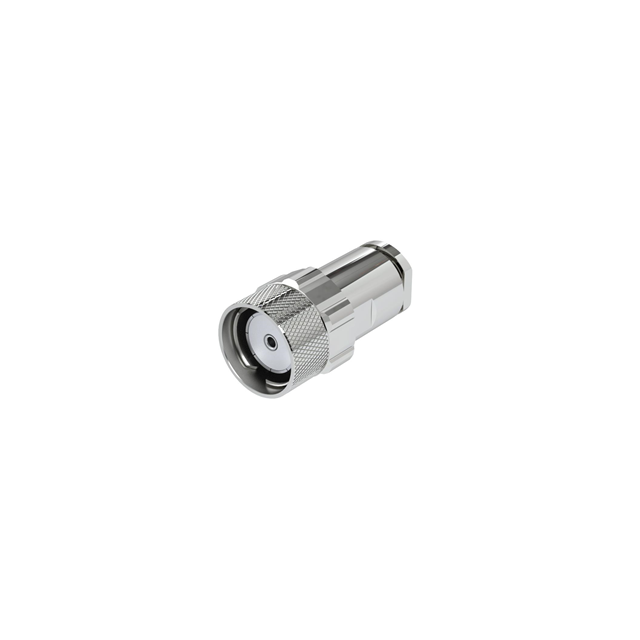

QLI / STRAIGHT PLUG CLAMP TYPE C

Search across all available documentation for this part.

Radiall USA, Inc.

QLI / STRAIGHT PLUG CLAMP TYPE C

Technical Specifications

Parameters and characteristics for this part

Specification	R184018007

Body Finish	White Bronze
Body Material	Brass
Cable Group	225, 214, RG-165, 393, 213, 216
Center Contact Material	Bronze
Center Contact Plating	Silver
Connector Style	QLI
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Clamp
Voltage Rating	1400 V

Part	Housing Color	Contact Termination	Center Contact Plating	Mounting Type	Voltage Rating	Connector Type	Impedance	Number of Ports	Shield Termination	Dielectric Material	Body Finish	Frequency - Max [Max]	Body Material	Fastening Type	Connector Style	Ingress Protection	Center Contact Material	Cable Group
Radiall USA, Inc. R184018007	Silver	Solder	Silver	Free Hanging (In-Line)	1400 V	Male Pin Plug	50 Ohms	1	Clamp	Polytetrafluoroethylene (PTFE)	White Bronze	6000 MHz	Brass	Bayonet Lock	QLI	IP67 - Dust Tight Waterproof	Bronze	213 214 216 225 393 RG-165

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 25.09

General part information

QLI Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
