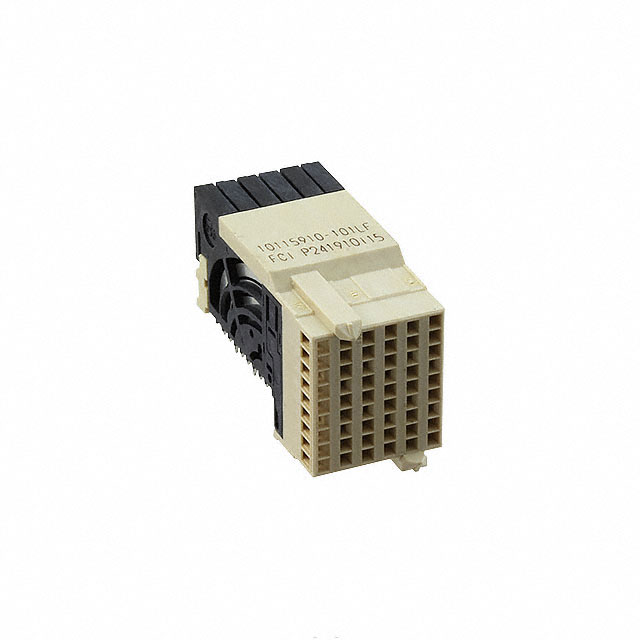

10115910-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 54P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 54P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10115910-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	6
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit
Voltage Rating	50 VAC

Part	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Termination	Number of Positions Loaded	Number of Positions	Contact Finish	Number of Rows	Voltage Rating	Connector Usage	Color	Pitch [x]	Pitch [x]	Connector Type	Number of Columns	Material Flammability Rating
Amphenol ICC (FCI) 10115910-101LF	High Speed	85 °C	-55 °C	Board Edge Right Angle Through Hole	500 mA	Press-Fit	All	54	Gold	9	50 VAC	Daughtercard	Natural	0.055 in	1.4 mm	Receptacle Female Sockets	6	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

54 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural High Speed
