969875-7

Active

TE Connectivity AMP Connectors

CONN RCPT 7POS 0.1 GOLD PCB R/A

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT 7POS 0.1 GOLD PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	969875-7

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	31.5 µin
Contact Finish Thickness - Mating	0.8 µm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.51 mm
Insulation Height	0.099 in
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Kinked Pin, Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN RCPT 7POS 0.1 GOLD PCB R/A

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Positions	Number of Positions Loaded	Insulation Material	Termination	Fastening Type	Connector Type	Contact Shape	Number of Rows	Contact Type	Contact Finish - Mating	Mounting Type	Contact Material
TE Connectivity AMP Connectors 969875-7	31.5 µin	0.8 µm	Black	2.51 mm	0.099 in	0.1 in	2.54 mm	2.54 mm	0.1 in	7	All	Polybutylene Terephthalate (PBT)	Kinked Pin, Solder	Push-Pull	Receptacle	Square	1	Female Socket	Gold	Through Hole, Right Angle	Copper Alloy

General part information

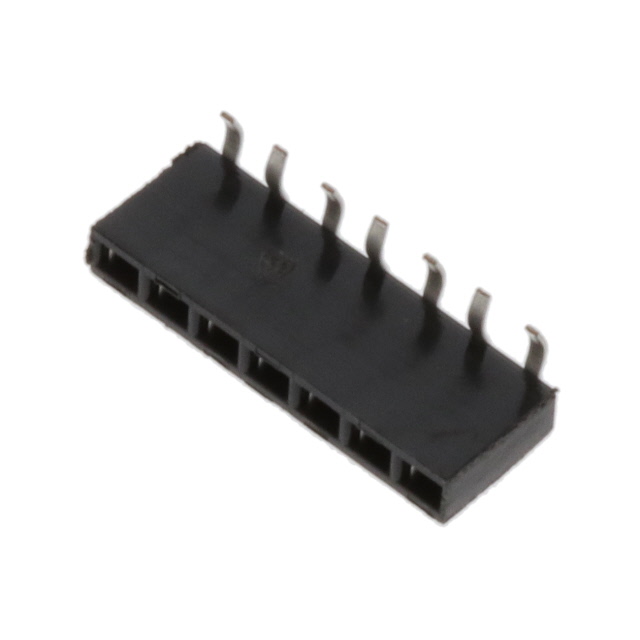

7 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
