2-111626-6

Active

TE Connectivity AMP Connectors

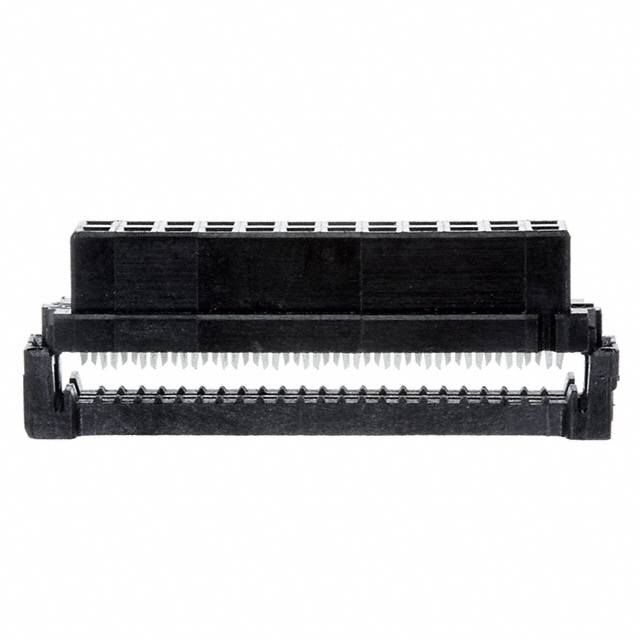

CONN RCPT 24POS IDC 28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-111626-6

Active

TE Connectivity AMP Connectors

CONN RCPT 24POS IDC 28AWG GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-111626-6	111626 Series

Cable Termination	IDC	IDC
Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Type	Female Socket	Female Socket
Features	Feed Through	Feed Through
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	24	8 - 44
Number of Rows	2	2
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Row Spacing	2 mm	2 mm
Row Spacing	0.079 in	0.079 in
Wire Gauge	28 AWG	28 AWG
Wire Type	Ribbon Cable	Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	750	$ 4.93

111626 Series

CONN RCPT 14POS IDC 28AWG GOLD

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Color	Pitch [x]	Pitch [x]	Wire Type	Row Spacing	Row Spacing	Contact Type	Contact Finish	Wire Gauge	Connector Type	Features	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 111626-2	2	0.76 Ám	30 Áin	IDC	Black	0.079 in	2 mm	Ribbon Cable	2 mm	0.079 in	Female Socket	Gold	28 AWG	Receptacle	Feed Through	Free Hanging (In-Line)	14
TE Connectivity AMP Connectors 2-111626-6	2	0.76 Ám	30 Áin	IDC	Black	0.079 in	2 mm	Ribbon Cable	2 mm	0.079 in	Female Socket	Gold	28 AWG	Receptacle	Feed Through	Free Hanging (In-Line)	24
TE Connectivity AMP Connectors 2-111626-2	2	0.76 Ám	30 Áin	IDC	Black	0.079 in	2 mm	Ribbon Cable	2 mm	0.079 in	Female Socket	Gold	28 AWG	Receptacle	Feed Through	Free Hanging (In-Line)	44
TE Connectivity AMP Connectors 111626-9	2	0.76 Ám	30 Áin	IDC	Black	0.079 in	2 mm	Ribbon Cable	2 mm	0.079 in	Female Socket	Gold	28 AWG	Receptacle	Feed Through	Free Hanging (In-Line)	40
TE Connectivity AMP Connectors 111626-4	2	0.76 Ám	30 Áin	IDC	Black	0.079 in	2 mm	Ribbon Cable	2 mm	0.079 in	Female Socket	Gold	28 AWG	Receptacle	Feed Through	Free Hanging (In-Line)	20
TE Connectivity AMP Connectors 1-111626-9	2	0.76 Ám	30 Áin	IDC	Black	0.079 in	2 mm	Ribbon Cable	2 mm	0.079 in	Female Socket	Gold	28 AWG	Receptacle	Feed Through	Free Hanging (In-Line)	20
TE Connectivity AMP Connectors 2-111626-4	2	0.76 Ám	30 Áin	IDC	Black	0.079 in	2 mm	Ribbon Cable	2 mm	0.079 in	Female Socket	Gold	28 AWG	Receptacle	Feed Through	Free Hanging (In-Line)	8
TE Connectivity AMP Connectors 111626-1	2	0.76 Ám	30 Áin	IDC	Black	0.079 in	2 mm	Ribbon Cable	2 mm	0.079 in	Female Socket	Gold	28 AWG	Receptacle	Feed Through	Free Hanging (In-Line)	10

Description

General part information

111626 Series

24 Position Rectangular Receptacle Connector IDC Gold 28 AWG

Documents

Technical documentation and resources
