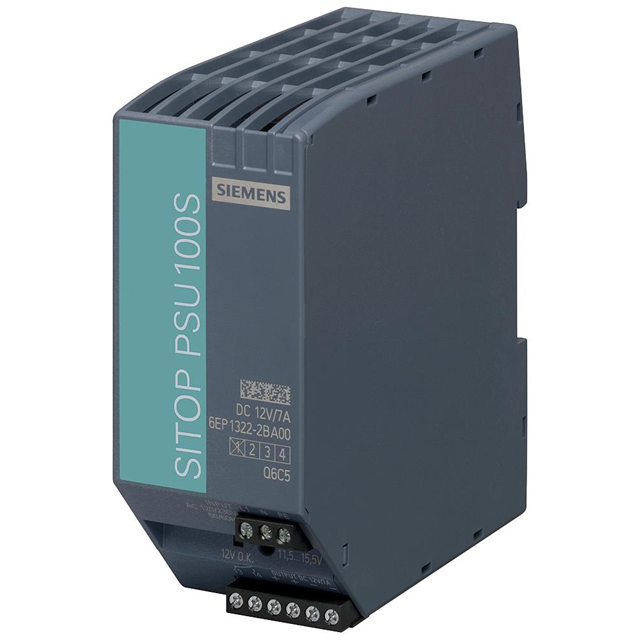

6EP13222BA00
ActiveSiemens
AC/DC DIN RAIL SUPPLY 12V
Deep-Dive with AI
Search across all available documentation for this part.
6EP13222BA00
ActiveSiemens
AC/DC DIN RAIL SUPPLY 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6EP13222BA00 |
|---|---|
| AC Voltage - Input [Max] | 132 VAC, 264 VAC |
| AC Voltage - Input [Min] | 170 VAC, 85 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | cCSAus, CE, cULus, UL |
| Current - Output (Max) | 7 A |
| Efficiency | 84 % |
| Features | Adjustable Output, IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 4.72 in |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [z] | 4.92 in |
| Size / Dimension [z] | 125 mm |
| Standard Number | 60950-1, UL 508 |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 271.30 | |
Description
General part information
6EP13222 Series
AC/DC DIN RAIL SUPPLY 12V
