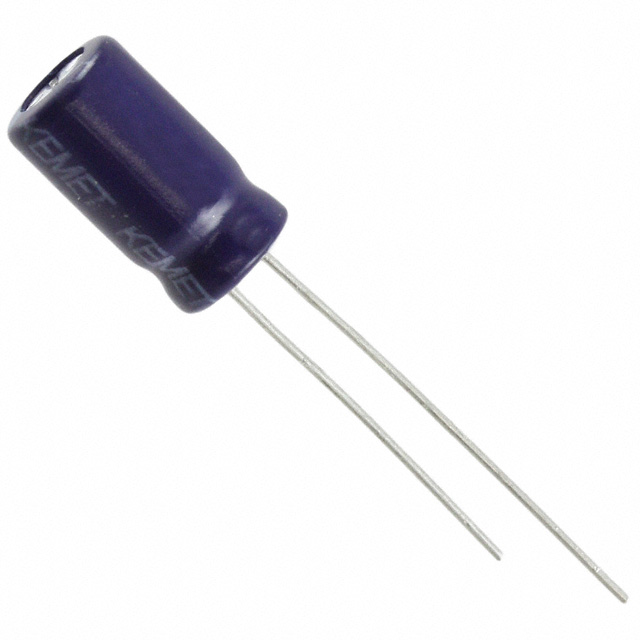

ESK107M035AE3AA

Active

KEMET

ALUMINIUM ELECTROLYTIC CAPACITOR, ESK SERIES, 100 - F, - 20%, 35 V, 6 MM, RADIAL LEADED ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +2

ESK107M035AE3AA

Active

KEMET

ALUMINIUM ELECTROLYTIC CAPACITOR, ESK SERIES, 100 - F, - 20%, 35 V, 6 MM, RADIAL LEADED ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESK107M035AE3AA

Applications	General Purpose
Capacitance	100 µF
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Lead Spacing	0.098 in
Lead Spacing	2.5 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	222 mA
Ripple Current @ Low Frequency	185 mA
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Tolerance	20 %
Voltage - Rated	35 V

ESK107M Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Ripple Current @ High Frequency	Voltage - Rated	Package / Case	Polarization	Tolerance	Mounting Type	Ripple Current @ Low Frequency	Capacitance	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
KEMET ESK107M025AE3AA	85 °C	-40 °C	0.492 in	12.5 mm	General Purpose	192 mA	25 VDC	Radial Can	Polar	20 %	Through Hole	160 mA	100 µF	0.098 in	2.5 mm	2000 Hrs	6 mm	0.236 in
KEMET ESK107M050AG3AA	85 °C	-40 °C	0.492 in	12.5 mm	General Purpose	276 mA	50 VDC	Radial Can	Polar	20 %	Through Hole	230 mA	100 µF	0.138 in	3.5 mm	2000 Hrs	8 mm	0.315 "
KEMET ESK107M016AC3AA	85 °C	-40 °C	0.492 in	12.5 mm	General Purpose	198 mA	16 V	Radial Can	Polar	20 %	Through Hole	165 mA	100 µF	0.079 in	2 mm	2000 Hrs	5 mm	0.197 "
KEMET ESK107M025AE3EA	85 °C	-40 °C	0.492 in	12.5 mm	General Purpose	240 mA	25 VDC	Radial Can	Polar	20 %	Through Hole	200 mA	100 µF	0.098 in	2.5 mm	2000 Hrs	6.3 mm	0.248 in
KEMET ESK107M016AE3AA	85 °C	-40 °C	0.492 in	12.5 mm	General Purpose		16 V	Radial Can	Polar	20 %	Through Hole		100 µF	0.098 in	2.5 mm	2000 Hrs	6.3 mm	0.248 in
KEMET ESK107M050AG3EA	85 °C	-40 °C	0.492 in	12.5 mm	General Purpose	345 mA	50 VDC	Radial Can	Polar	20 %	Through Hole	230 mA	100 µF	0.138 in	3.5 mm	2000 Hrs	8 mm	0.315 "
KEMET ESK107M100AH4AA	85 °C	-40 °C			General Purpose	480 mA	100 V	Radial Can	Polar	20 %	Through Hole	400 mA	100 µF	0.197 in	5 mm	2000 Hrs	10 mm	0.394 in	22 mm	0.866 in
KEMET ESK107M035AE3AA	85 °C	-40 °C	0.492 in	12.5 mm	General Purpose	222 mA	35 V	Radial Can	Polar	20 %	Through Hole	185 mA	100 µF	0.098 in	2.5 mm	2000 Hrs	6.3 mm	0.248 in
KEMET ESK107M063AH1EA	85 °C	-40 °C			General Purpose		63 V	Radial Can	Polar	20 %	Through Hole		100 µF	0.197 in	5 mm	2000 Hrs	10 mm	0.394 in		0.531 "	13.5 mm
KEMET ESK107M010AC3AA	85 °C	-40 °C	0.492 in	12.5 mm	General Purpose	216 mA	10 V	Radial Can	Polar	20 %	Through Hole	180 mA	100 µF	0.079 in	2 mm	2000 Hrs	5 mm	0.197 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.27
		10	$ 0.18
		500	$ 0.06
		1000	$ 0.06
		5000	$ 0.05
		10000	$ 0.05
Newark	Each	10	$ 0.14
		25	$ 0.12
		50	$ 0.10
		100	$ 0.07
		500	$ 0.06
		1000	$ 0.05
		2500	$ 0.05

Description

General part information

ESK107M Series

100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
