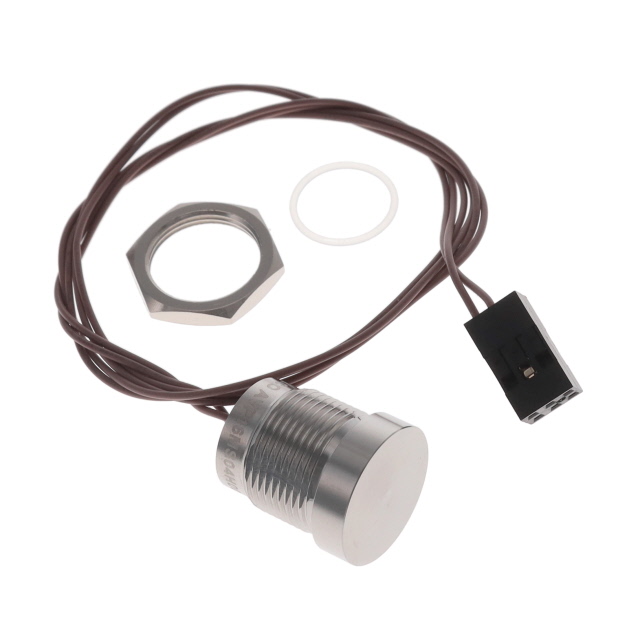

AVP16MS04H000T5B04
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSHBUTTON SPST-NO 1A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AVP16MS04H000T5B04
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSHBUTTON SPST-NO 1A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AVP16MS04H000T5B04 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Silver |
| Electrical Life | 50000000 Cycles |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mechanical Life | 50000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | Off-Mom |
| Type | Anti-Vandal, Piezo |
| Voltage Rating - AC | 24 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.51 | |
| 10 | $ 45.97 | |||
| 25 | $ 43.83 | |||
| 50 | $ 40.89 | |||
| 100 | $ 39.29 | |||
| 250 | $ 36.61 | |||
Description
General part information
AVP16M Series
Pushbutton Switch SPST-NO Piezo, Anti-Vandal Panel Mount, Front
