MPZI019/F/BL/24

Active

BULGIN LIMITED

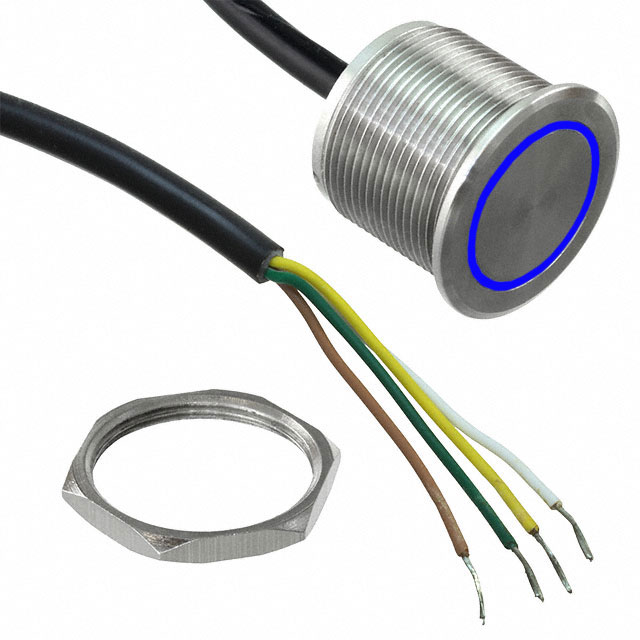

PIEZO SWITCH, 19MM PANEL, FLATHEAD,

Search across all available documentation for this part.

Active

BULGIN LIMITED

PIEZO SWITCH, 19MM PANEL, FLATHEAD,

Technical Specifications

Parameters and characteristics for this part

Specification	MPZI019/F/BL/24

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Electrical Life	10000000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP68, IP69K
Mechanical Life	10000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Piezo
Voltage Rating - AC	24 V
Voltage Rating - DC	24 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating - DC	Actuator Marking	Voltage Rating - AC	Switch Function	Illumination Voltage (Nominal)	Color - Actuator/Cap	Illumination Type, Color	Mounting Type	Type	Ingress Protection	Actuator Type	Mechanical Life	Panel Cutout Dimensions [diameter]	Circuit	Electrical Life
BULGIN LIMITED MPZI019/F/BL/24	85 °C	-40 °C	Wire Leads	24 V	No Marking	24 V	Off-Mom	24 VAC/DC	Silver	Blue LED	Panel Mount Front	Piezo	IP68 IP69K	Button Flush Round	10000000 Cycles	19 mm	SPST-NO	10000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Piezo Panel Mount, Front
