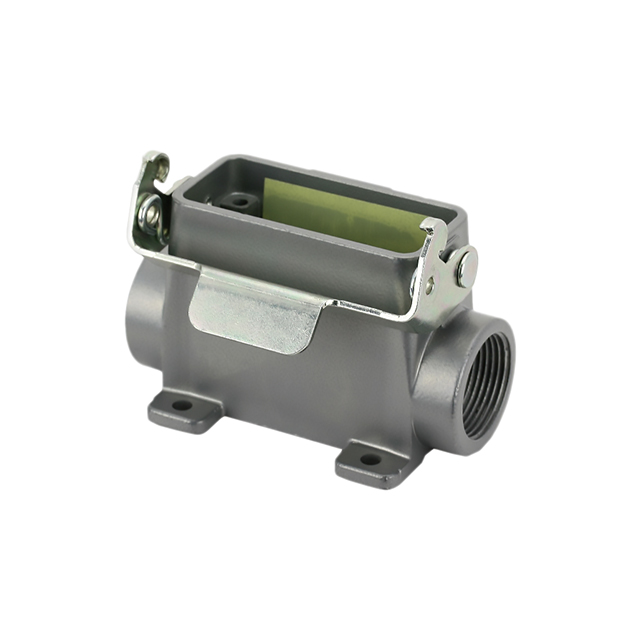

C14610N0156012

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA10 M20

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA10 M20

Technical Specifications

Parameters and characteristics for this part

Specification	C14610N0156012

Connector Type	Base - Box Mount
Features	Feed Through
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A10
Size / Dimension [x]	3.307 in
Size / Dimension [x]	84 mm
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50 mm
Size / Dimension [z]	2.047 in
Size / Dimension [z]	52 mm
Style	Side Entry
Thread Size	M20

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Ingress Protection	Style	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Lock Location	Size	Connector Type	Thread Size	Features
Amphenol Tuchel Industrial C14610N0155002	3.307 in	1.969 in	2.047 in	50 mm	52 mm	84 mm	IP65 - Dust Tight Water Resistant	Side Entry	100 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	A10	Base - Box Mount	M25
Amphenol Tuchel Industrial C14610N0156012	3.307 in	1.969 in	2.047 in	50 mm	52 mm	84 mm	IP65 - Dust Tight Water Resistant	Side Entry	100 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	A10	Base - Box Mount	M20	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 22.35

General part information

Base - Box Mount Connector Side Entry M20 A10 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
