PHJ.0B.305.CLAD52

Active

LEMO

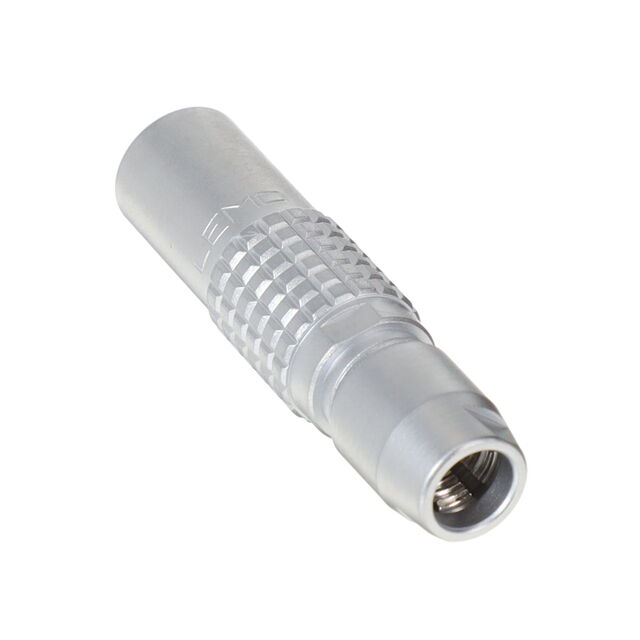

CONN RCPT MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PHJ.0B.305.CLAD52

Active

LEMO

CONN RCPT MALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.75
		10	$ 30.43
		25	$ 29.12
		50	$ 28.18
		100	$ 27.24
		250	$ 25.74

Description

General part information

PHJ.0B Series

5 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PHJ.0B.305.CLAD52	PHJ.0B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.126 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.165 in
Cable Opening	-	3.2 mm
Cable Opening	-	0.22 in
Cable Opening	-	5.3 mm
Cable Opening	-	5.6 mm
Cable Opening	-	0.209 in
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	0.13 - 4.2 mm
Cable Opening [diameter]	5.2 mm	3.3 - 5.2 mm
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	6.5 A	2 - 10 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	2 - 9
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	J	J
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	305	302 - 309
Shielding	Shielded	Shielded
Termination	-	Crimp

PHJ.0B Series

CONN RCPT MALE 4P GOLD SLDR CUP

Part	Features	Backshell Material, Plating	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Fastening Type	Material Flammability Rating	Number of Positions	Shell Material	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Connector Type	Color	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Current Rating (Amps)	Contact Finish - Mating	Primary Material	Mounting Type	Insert Material	Ingress Protection	Contact Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Termination
LEMO PHJ.0B.304.CLAD52Z	Backshell	Brass, Chrome	Chrome	1 µm	39.4 µin	J	Push-Pull	UL94 V-0	4	Brass	0.165 in, 0.205 in	4.2 mm	5.2 mm	Male Pins, Receptacle	Silver	304	-55 °C	250 °C	Shielded	7 A	Gold	Metal	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	IP50	Brass
LEMO PHJ.0B.304.CLAD42Z	Backshell	Brass, Chrome	Chrome	1 µm	39.4 µin	J	Push-Pull	UL94 V-0	4	Brass				Male Pins, Receptacle	Silver	304	-55 °C	250 °C	Shielded	7 A	Gold	Metal	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	IP50	Brass	0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO PHJ.0B.304.CLAD35	Backshell	Brass, Chrome	Chrome	1 µm	39.4 µin	J	Push-Pull	UL94 V-0	4	Brass		0.13 in, 0.165 in	3.3 mm, 4.2 mm	Male Pins, Receptacle	Silver	304	-55 °C	250 °C	Shielded	7 A	Gold	Metal	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	IP50	Brass
LEMO PHJ.0B.309.CLAD42	Backshell	Brass, Chrome	Chrome	1 µm	39.4 µin	J	Push-Pull	UL94 V-0	9	Brass				Male Pins, Receptacle	Silver	309	-55 °C	250 °C	Shielded	2 A	Gold	Metal	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	IP50	Brass	0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO PHJ.0B.304.CLAD56	Backshell	Brass, Chrome	Chrome	1 µm	39.4 µin	J	Push-Pull	UL94 V-0	4	Brass				Male Pins, Receptacle	Silver	304	-55 °C	250 °C	Shielded	7 A	Gold	Metal	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	IP50	Brass					0.22 in	5.3 mm	5.6 mm	0.209 in
LEMO PHJ.0B.304.CYCD42	Backshell	Brass, Chrome	Chrome	1 µm	39.4 µin	J	Push-Pull	UL94 V-0	4	Brass				Male Pins, Receptacle	Silver	304	-55 °C	250 °C	Shielded	7 A	Gold	Metal	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	IP50	Brass	0.126 in	4.2 mm	0.165 in	3.2 mm					Crimp
LEMO PHJ.0B.302.CLAD52	Backshell	Brass, Chrome	Chrome	1 µm	39.4 µin	J	Push-Pull	UL94 V-0	2	Brass	0.165 in, 0.205 in	4.2 mm	5.2 mm	Male Pins, Receptacle	Silver	302	-55 °C	250 °C	Shielded	10 A	Gold	Metal	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	IP50	Brass
LEMO PHJ.0B.303.CLAD52	Backshell	Brass, Chrome	Chrome	1 µm	39.4 µin	J	Push-Pull	UL94 V-0		Brass	0.165 in, 0.205 in	4.2 mm	5.2 mm	Male Pins, Receptacle	Silver	303	-55 °C	250 °C	Shielded	8 A	Gold	Metal	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	IP50	Brass
LEMO PHJ.0B.305.CLAD52	Backshell	Brass, Chrome	Chrome	1 µm	39.4 µin	J	Push-Pull	UL94 V-0		Brass	0.165 in, 0.205 in	4.2 mm	5.2 mm	Male Pins, Receptacle	Silver	305	-55 °C	250 °C	Shielded	6.5 A	Gold	Metal	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	IP50	Brass
LEMO PHJ.0B.304.CLAD52	Backshell	Brass, Chrome	Chrome	1 µm	39.4 µin	J	Push-Pull	UL94 V-0	4	Brass	0.165 in, 0.205 in	4.2 mm	5.2 mm	Male Pins, Receptacle	Silver	304	-55 °C	250 °C	Shielded	7 A	Gold	Metal	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	IP50	Brass
