RD7127-25-2M8

Active

TE Connectivity Raychem Cable Protection

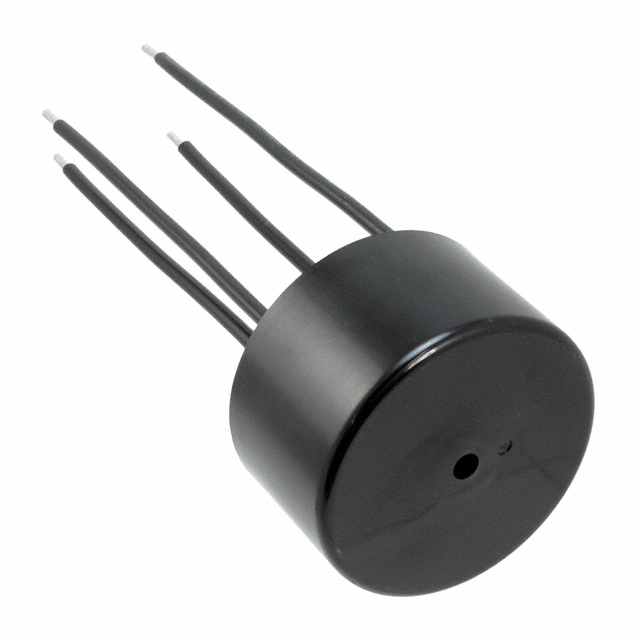

CMC 2.8MH 25A 2LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 2.8MH 25A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Max)	Package / Case	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Inductance @ Frequency	Number of Lines	Voltage Rating - DC	Filter Type	DC Resistance (DCR) (Max)	DC Resistance (DCR) (Max) [Max]
TE Connectivity Raychem Cable Protection RD7127-10-14M0	10 A	Horizontal	4 Lead	1.594 in	40.5 mm	70 mm	2.756 in	70 mm	2.756 in	600 V	-25 °C	110 °C	Through Hole	1 kHz 14 mH	2	850 V	Power Line	33.5 mOhm
TE Connectivity Raychem Cable Protection RD7127-16-5M7	16 A	Horizontal	4 Lead	1.594 in	40.5 mm	70 mm	2.756 in	70 mm	2.756 in	600 V	-25 °C	110 °C	Through Hole	5.7 mH	2	850 V	Power Line	14.1 mOhm
TE Connectivity Raychem Cable Protection RD7127-25-2M8	25 A	Horizontal	4 Lead	1.594 in	40.5 mm	70 mm	2.756 in	70 mm	2.756 in	600 V	-25 °C	110 °C	Through Hole	2.8 mH	2	850 V	Power Line		6.4 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.38

General part information

2.8 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 25A (Typ) DCR 6.4mOhm (Typ)
