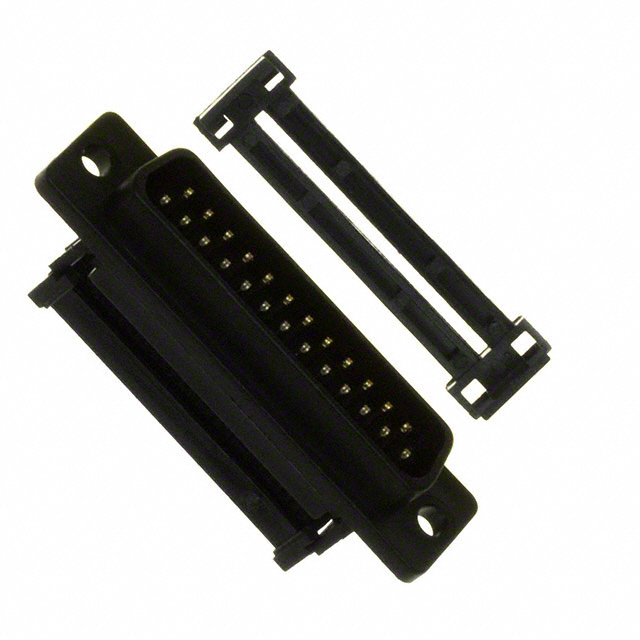

L17DBFRB25P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 25POS IDC

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 25POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	L17DBFRB25P

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Strain Relief, Grounding Indents, Feed Through
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC
Wire Gauge	26 AWG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Dielectric Material	Current Rating (Amps)	Termination	Contact Type	Features	Material Flammability Rating	Wire Gauge	Mounting Type	Contact Material	Connector Style	Number of Rows	Flange Feature	Color	Contact Finish Thickness	Contact Finish	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L17DBFRB25P	105 ░C	-55 °C	250 VDC	B DB	3	Male Pins Plug	Thermoplastic Glass Filled	3 A	IDC Ribbon Cable	Signal	Feed Through Grounding Indents Strain Relief	UL94 V-0	26 AWG	Free Hanging (In-Line)	Brass	D-Sub	2	Housing/Shell (Unthreaded)	Black	Flash	Gold	Nickel Plated Steel
Amphenol ICC (Commercial Products) L17DBFRB25PC309	85 °C	-25 °C	250 VDC	B DB	3	Male Pins Plug	Thermoplastic Glass Filled	5 A	IDC Ribbon Cable	Signal	Feed Through Grounding Indents Strain Relief	UL94 V-0	26 AWG	Free Hanging (In-Line)	Brass	D-Sub	2	Housing/Shell (Unthreaded)	Black		Gold	Nickel Plated Steel	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
