MSBP05ML-SBPFL-SBA05

Active

Amphenol LTW

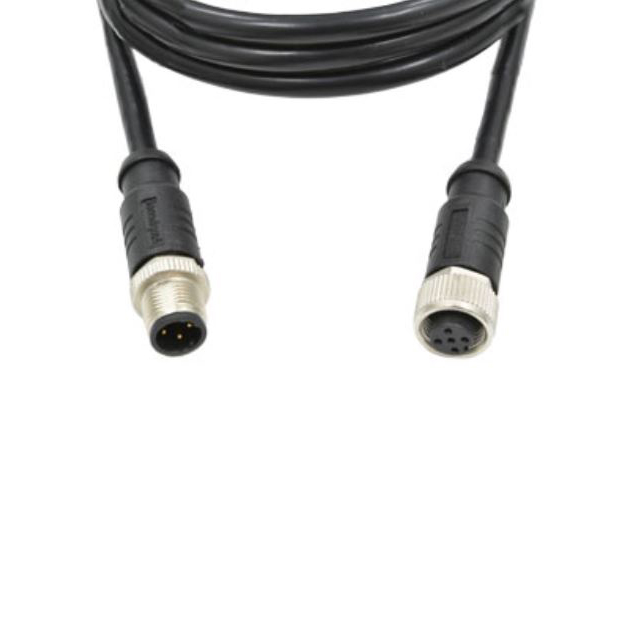

M SERIES SENSOR CONNECTOR, M12, B CODE, PLASTIC, 4A, 05 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT-TO-STRAIGHT, SCREW THREAD,

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, B CODE, PLASTIC, 4A, 05 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT-TO-STRAIGHT, SCREW THREAD,

Technical Specifications

Parameters and characteristics for this part

Specification	MSBP05ML-SBPFL-SBA05

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation	B
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	5
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	B
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

Part	Length [x]	Length [x]	Cable Material	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert	2nd Connector Orientation	1st Connector Mounting Type	2nd Connector Number of Positions Loaded	Assembly Configuration	Ingress Protection	1st Connector Type	Usage	Cable Type	Color	1st Connector Number of Positions	2nd Connector Type	2nd Connector Shell Size - Insert	1st Connector Orientation	2nd Connector Mounting Type	Shielding	2nd Connector Number of Positions	1st Connector Gender	2nd Connector Gender
Amphenol LTW MSBP05ML-SBPML-SB001	1 m	3.28 ft	Polyurethane (PUR)	All	M12	B	Free Hanging (In-Line)	All	Standard	IP68 IP69K	Receptacle	Industrial Environments	Round	Black	5	Receptacle	M12	B	Free Hanging (In-Line)	Unshielded	5	Male Pins
Amphenol LTW MSBP05ML-SBPML-SBA05	500 mm	1.64 ft	Polyurethane (PUR)	All	M12	B	Free Hanging (In-Line)	All	Standard	IP68 IP69K	Receptacle	Industrial Environments	Round	Black	5	Receptacle	M12	B	Free Hanging (In-Line)	Unshielded	5	Male Pins
Amphenol LTW MSBP05ML-SBPML-SD001	1 m	3.28 ft	Polyvinyl Chloride (PVC)	All	M12	B	Free Hanging (In-Line)	All	Standard	IP68 IP69K	Receptacle	Industrial Environments	Round	Black	5	Receptacle	M12	B	Free Hanging (In-Line)	Unshielded	5	Male Pins
Amphenol LTW MSBP05ML-SBPFL-SBA05	500 mm	1.64 ft	Polyurethane (PUR)	All	M12	B	Free Hanging (In-Line)	All	Standard	IP68 IP69K	Receptacle	Industrial Environments	Round	Black	5	Plug	M12	B	Free Hanging (In-Line)	Unshielded	5	Male Pins	Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 1.64' (500.00mm)

Technical documentation and resources
