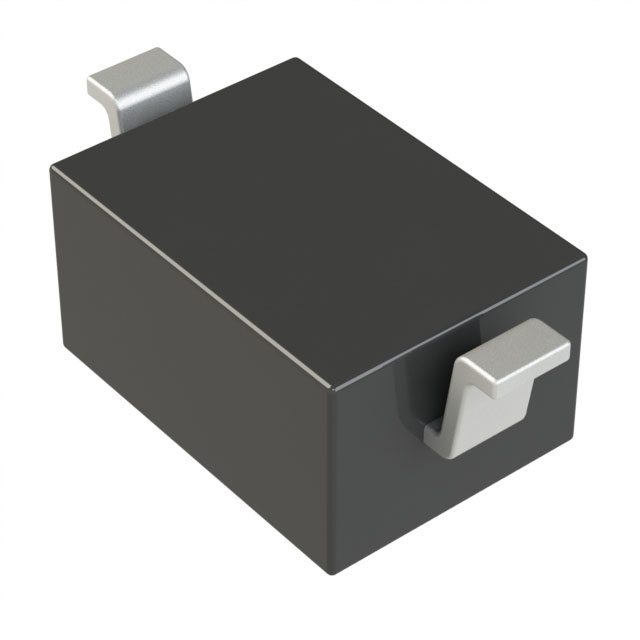

PESD12VL1BA

Active

UMW

TVS DIODE 12VWM 26VC SOD323

Search across all available documentation for this part.

Active

UMW

TVS DIODE 12VWM 26VC SOD323

Technical Specifications

Parameters and characteristics for this part

Specification	PESD12VL1BA

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	30 pF
Current - Peak Pulse (10/1000µs)	10 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOD-323, SC-76
Power - Peak Pulse	260 W
Power Line Protection	False
Supplier Device Package	SOD-323
Type	Zener
Voltage - Breakdown (Min) [Min]	13.3 V
Voltage - Clamping (Max) @ Ipp [Max]	26 V
Voltage - Reverse Standoff (Typ)	12 V

TVS DIODE 12VWM 26VC SOD323

Part	Power - Peak Pulse	Supplier Device Package	Package / Case	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Pulse (10/1000µs)	Type	Applications	Mounting Type	Voltage - Breakdown (Min) [Min]	Bidirectional Channels [custom]	Capacitance @ Frequency	Power Line Protection
UMW PESD12VL1BA	260 W	SOD-323	SC-76, SOD-323	26 V	12 V	-55 °C	150 °C	10 A	Zener	General Purpose	Surface Mount	13.3 V	1	30 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
