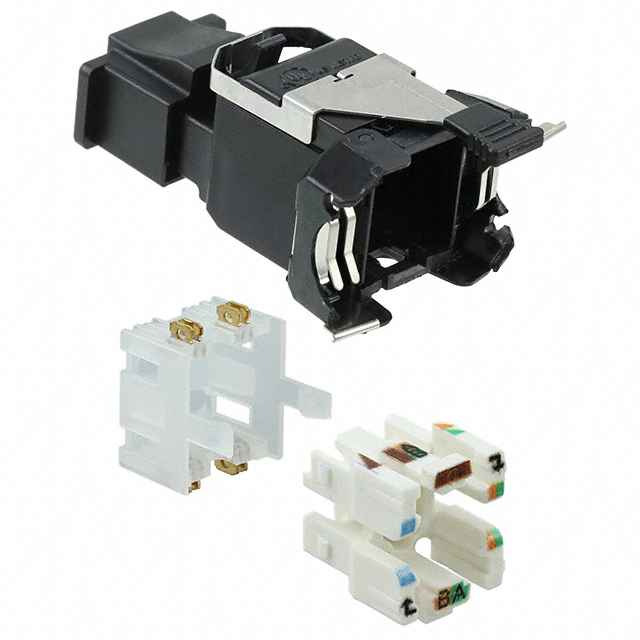

RVAFPUBK-S1

Active

Belden Inc.

RJ45 CONNECTOR, PLUG, 8P8C, 1PORT, CAT6A

Search across all available documentation for this part.

Active

Belden Inc.

RJ45 CONNECTOR, PLUG, 8P8C, 1PORT, CAT6A

Technical Specifications

Parameters and characteristics for this part

Specification	RVAFPUBK-S1

Exterior Contact Finish	Gold
Exterior Contact Finish Thickness	1.27 Ám
Exterior Contact Finish Thickness	50 Áin
Exterior Contact Material	Copper Clad
Exterior Housing Color	Gray
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Interior Contact Finish	Gold
Interior Contact Material	Copper Alloy
Interior Housing Color	White
Interior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Ratings	Cat6a
Specifications	10G Base-T
Style	Modular

Part	Exterior Type (Adapter End)	Ratings	Interior Contact Finish	Interior Contact Material	Interior Housing Color	Interior Type (Adapter End)	Specifications	Exterior Housing Color	Features	Style	Operating Temperature [Min]	Operating Temperature [Max]	Exterior Contact Finish Thickness	Exterior Contact Finish Thickness	Exterior Contact Finish	Exterior Contact Material
Belden Inc. RVAFPSME-S1	Modular Jack 8p8c (RJ45 Ethernet)	Cat6a	Gold	Copper Clad	White	Modular Jack 8p8c (RJ45 Ethernet)	10G Base-T	Gray	Shielded	Modular	-10 °C	60 °C
Belden Inc. RVAFPUBK-S1	Modular Jack 8p8c (RJ45 Ethernet)	Cat6a	Gold	Copper Alloy	White	Modular Jack 8p8c (RJ45 Ethernet)	10G Base-T	Gray		Modular	-10 °C	60 °C	1.27 Ám	50 Áin	Gold	Copper Clad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Insert Modular Jack 8p8c (RJ45, Ethernet) To Modular Jack 8p8c (RJ45, Ethernet) Gray
