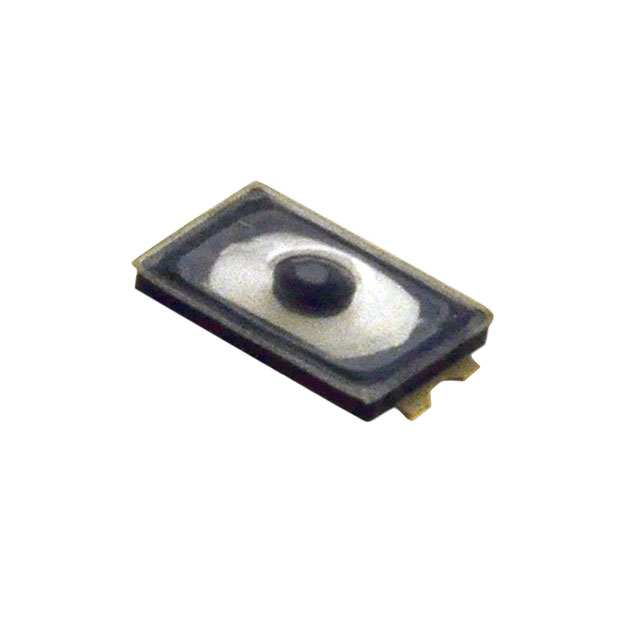

TL3780AF240QG

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL3780AF240QG

Actuator Height off PCB, Vertical	0.6 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	500000 Cycles
Mounting Type	Surface Mount
Operating Force	240 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	3 mm
Outline [y]	2 mm
Switch Function	Off-Mom
Switch Travel	0.13 mm
Termination Style	Gull Wing

Part	Circuit	Outline [x]	Outline [y]	Contact Rating @ Voltage	Operating Force	Actuator Height off PCB, Vertical	Actuator Orientation	Mechanical Life	Illumination	Switch Travel	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Termination Style	Switch Function
E-Switch TL3780AF240QG	SPST-NO	3 mm	2 mm	0.05 A 12 VDC	240 gf	0.6 mm	Top Actuated	500000 Cycles	Non-Illuminated	0.13 mm	Surface Mount	85 °C	-40 °C	Standard	Gull Wing	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
