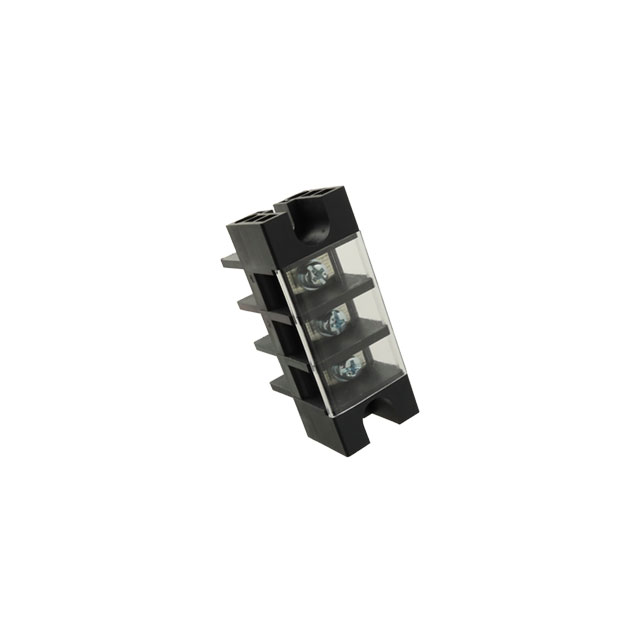

TBU-03-W3-CC

Active

Adam Tech

65A -40℃~+130℃ 600V BLACK 3 1 11.1MM BARRIER TERMINAL BLOCKS ROHS

Search across all available documentation for this part.

Active

Adam Tech

65A -40℃~+130℃ 600V BLACK 3 1 11.1MM BARRIER TERMINAL BLOCKS ROHS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Circuit 0.630" (16.00mm) Barrier Block Connector Screws

Technical documentation and resources

Specification	TBU-03-W3-CC	TBU-03 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Screw	Screw
Color	Black	Black
Current Rating (Amps)	65 A	30 - 65 A
Features	Flange	Flange
Material - Insulation	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	3	3
Number of Rows	1	1
Number of Wire Entries	3	3
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.63 in	0.433 - 0.63 in
Pitch [x]	16 mm	11 - 16 mm
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Nickel	Nickel
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws, Screws with Captive Plate
Voltage Rating	600 V	300 - 600 V
Wire Gauge [Max]	14 AWG	14 - 22 AWG
Wire Gauge [Min]	6 AWG	6 - 10 AWG

Part	Barrier Type	Top Termination	Mounting Type	Bottom Termination	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Block Type	Material - Insulation	Color	Terminal Screw Finish	Number of Rows	Current Rating (Amps)	Voltage Rating	Number of Circuits	Material Flammability Rating	Features	Terminal Screw Material	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Number of Wire Entries
Adam Tech TBU-03-W3-CCS	2 Wall (Dual)	Screws	Chassis, Panel	Screw	-40 °C	130 °C	Barrier Block	Polybutylene Terephthalate (PBT)	Black	Nickel	1	65 A	600 V	3	UL94 V-0	Flange	Steel	6 AWG	14 AWG	0.63 in	16 mm	3
Adam Tech TBU-03-W1	2 Wall (Dual)	Screws with Captive Plate	Chassis, Panel	Screw	-40 °C	130 °C	Barrier Block	Polybutylene Terephthalate (PBT)	Black		1	30 A	300 VDC	3	UL94 V-0	Flange	Steel	10 AWG	22 AWG	0.433 in	11 mm	3
Adam Tech TBU-03-W3-CC	2 Wall (Dual)	Screws	Chassis, Panel	Screw	-40 °C	130 °C	Barrier Block	Polybutylene Terephthalate (PBT)	Black	Nickel	1	65 A	600 V	3	UL94 V-0	Flange	Steel	6 AWG	14 AWG	0.63 in	16 mm	3
