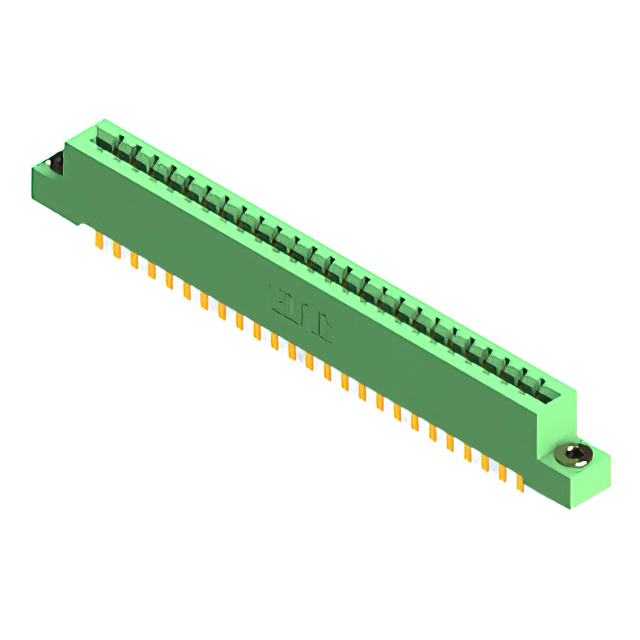

837-050-500-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-050-500-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-050-500-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
837-050 Series
...
| Part | Color | Pitch [x] | Pitch [x] | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Number of Positions/Bay/Row [custom] | Read Out | Contact Finish | Termination Rows | Termination | Mounting Type | Number of Rows | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Gender | Flange Feature | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | 0.156 in | 3.96 mm | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | 25 | Dual | Gold | 2 | Wire Wrap | Through Hole | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 50 | 10 Áin | 0.25 Ám | Female | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | Green | 0.156 in | 3.96 mm | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | 25 | Dual | Gold | 2 | Solder Eyelet(s) | Through Hole | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 50 | 10 Áin | 0.25 Ám | Female | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm | |||
EDAC Inc. | Green | 0.156 in | 3.96 mm | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | 25 | Dual | Gold | 2 | Solder | Board Edge Straddle Mount | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 50 | 10 Áin | 0.25 Ám | Female | Floating Bobbin Top Mount Opening | 0.116 in | 2.95 mm | Card Extender | ||
EDAC Inc. | Green | 0.156 in | 3.96 mm | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | 25 | Dual | Gold | 2 | Solder | Through Hole | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 50 | 10 Áin | 0.25 Ám | Female | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | |||
EDAC Inc. | Green | 0.156 in | 3.96 mm | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | 25 | Dual | Gold | 2 | Solder | Board Edge Straddle Mount | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 50 | 10 Áin | 0.25 Ám | Female | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | Card Extender | ||
EDAC Inc. | Green | 0.156 in | 3.96 mm | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | 25 | Dual | Gold | 2 | Solder | Through Hole Right Angle | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 50 | 10 Áin | 0.25 Ám | Female | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Green | 0.156 in | 3.96 mm | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | 25 | Dual | Gold | 2 | Solder | Board Edge Straddle Mount | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 50 | 10 Áin | 0.25 Ám | Female | Card Extender | |||||
EDAC Inc. | Green | 0.156 in | 3.96 mm | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | 25 | Dual | Gold | 2 | Wire Wrap | Through Hole | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 50 | 10 Áin | 0.25 Ám | Female | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | |||
EDAC Inc. | Green | 0.156 in | 3.96 mm | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | 25 | Dual | Gold | 2 | Solder | Through Hole Right Angle | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 50 | 10 Áin | 0.25 Ám | Female | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Green | 0.156 in | 3.96 mm | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | 25 | Dual | Gold | 2 | Wire Wrap | Through Hole | 2 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 50 | 10 Áin | 0.25 Ám | Female | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-050 Series
50 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
