6380-4PG-318
ActiveConxall/Switchcraft

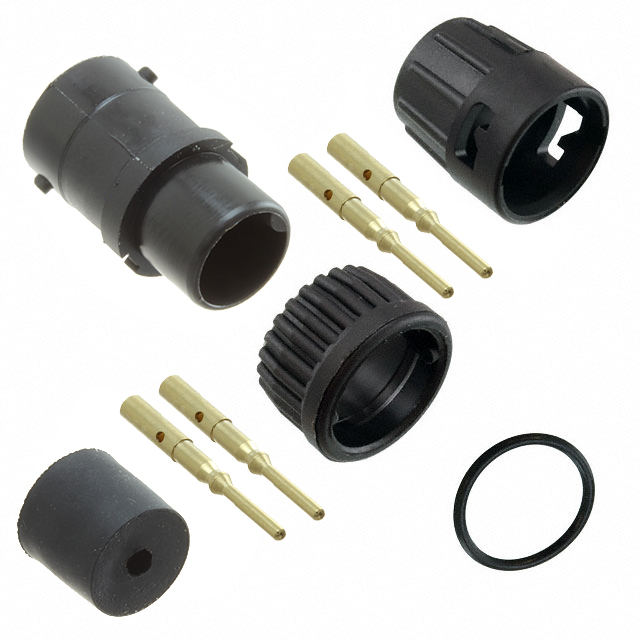

CONN PLUG MALE 4POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6380-4PG-318
ActiveConxall/Switchcraft
CONN PLUG MALE 4POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6380-4PG-318 | 6380-4PG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.13 - 0.17 in |
| Cable Opening | - | 3.3 - 4.32 mm |
| Cable Opening | - | 4.83 - 5.59 mm |
| Cable Opening | - | 5.84 mm |
| Cable Opening | - | 0.19 - 0.22 in |
| Cable Opening | - | 0.21 - 0.25 in |
| Cable Opening | - | 5.33 - 6.35 mm |
| Cable Opening [Max] [custom] | 0.2 in | 0.2 in |
| Cable Opening [Max] [custom] | 5.08 mm | 5.08 mm |
| Cable Opening [Min] [custom] | 4.57 mm | 4.57 mm |
| Cable Opening [Min] [custom] | 0.18 in | 0.18 in |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
6380-4PG Series
CONN PLUG MALE 4POS GOLD CRIMP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Contact Finish - Mating | Applications | Fastening Type | Mounting Type | Orientation | Primary Material | Contact Material | Color | Current Rating (Amps) | Voltage Rating | Number of Positions | Backshell Material, Plating | Cable Opening [custom] | Cable Opening [custom] | Termination | Connector Type | Features | Shielding | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 6380-4PG-513 | -40 °C | 115 °C | Weathertight | Gold | Automotive, Communication Systems, Instrumentation | Bayonet Lock | Free Hanging (In-Line) | Keyed | Plastic | Brass | Black | Varies by Wire Gauge | 600 V | 4 | Nylon, Polyamide (PA) | 0.13 in, 0.15 in | 3.3 mm, 3.81 mm | Crimp | Male Pins, Plug | Backshell | Unshielded | |||||||||
Conxall/Switchcraft 6380-4PG-321 | -40 °C | 115 °C | Weathertight | Gold | Automotive, Communication Systems, Instrumentation | Bayonet Lock | Free Hanging (In-Line) | Keyed | Plastic | Brass | Black | Varies by Wire Gauge | 600 V | 4 | Nylon, Polyamide (PA) | Crimp | Male Pins, Plug | Backshell | Unshielded | 5.33 mm | 5.84 mm | 0.21 in | 0.23 in | |||||||
Conxall/Switchcraft 6380-4PG-315 | -40 °C | 115 °C | Weathertight | Gold | Automotive, Communication Systems, Instrumentation | Bayonet Lock | Free Hanging (In-Line) | Keyed | Plastic | Brass | Black | Varies by Wire Gauge | 600 V | 4 | Nylon, Polyamide (PA) | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | Crimp | Male Pins, Plug | Backshell | Unshielded | |||||||||
Conxall/Switchcraft 6380-4PG-318 | -40 °C | 115 °C | Weathertight | Gold | Automotive, Communication Systems, Instrumentation | Bayonet Lock | Free Hanging (In-Line) | Keyed | Plastic | Brass | Black | Varies by Wire Gauge | 600 V | 4 | Nylon, Polyamide (PA) | Crimp | Male Pins, Plug | Backshell | Unshielded | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||||
Conxall/Switchcraft 6380-4PG-3DC | -40 °C | 115 °C | Weathertight | Gold | Automotive, Communication Systems, Instrumentation | Bayonet Lock | Free Hanging (In-Line) | Keyed | Plastic | Brass | Black | Varies by Wire Gauge | 600 V | 4 | Nylon, Polyamide (PA) | Crimp | Male Pins, Plug | Backshell | Unshielded | |||||||||||
Conxall/Switchcraft 6380-4PG-522 | -40 °C | 115 °C | Weathertight | Gold | Automotive, Communication Systems, Instrumentation | Bayonet Lock | Free Hanging (In-Line) | Keyed | Plastic | Brass | Black | Varies by Wire Gauge | 600 V | 4 | Nylon, Polyamide (PA) | Crimp | Male Pins, Plug | Backshell | Unshielded | 5.59 mm | 0.22 in | 0.25 in | 6.35 mm | |||||||
Conxall/Switchcraft 6380-4PG-519 | -40 °C | 115 °C | Weathertight | Gold | Automotive, Communication Systems, Instrumentation | Bayonet Lock | Free Hanging (In-Line) | Keyed | Plastic | Brass | Black | Varies by Wire Gauge | 600 V | 4 | Nylon, Polyamide (PA) | Crimp | Male Pins, Plug | Backshell | Unshielded | 4.83 mm | 0.19 in | 0.21 in | 5.33 mm |
