6380-4PG-519

Active

Conxall/Switchcraft

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6380-4PG-519

Active

Conxall/Switchcraft

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6380-4PG-519	6380-4PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.13 - 0.17 in
Cable Opening	-	3.3 - 4.32 mm
Cable Opening	-	5.84 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [Max] [diameter]	0.21 in	0.21 - 0.25 in
Cable Opening [Max] [diameter]	5.33 mm	5.33 - 6.35 mm
Cable Opening [Min] [diameter]	0.19 in	0.19 - 0.22 in
Cable Opening [Min] [diameter]	4.83 mm	4.83 - 5.59 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

6380-4PG Series

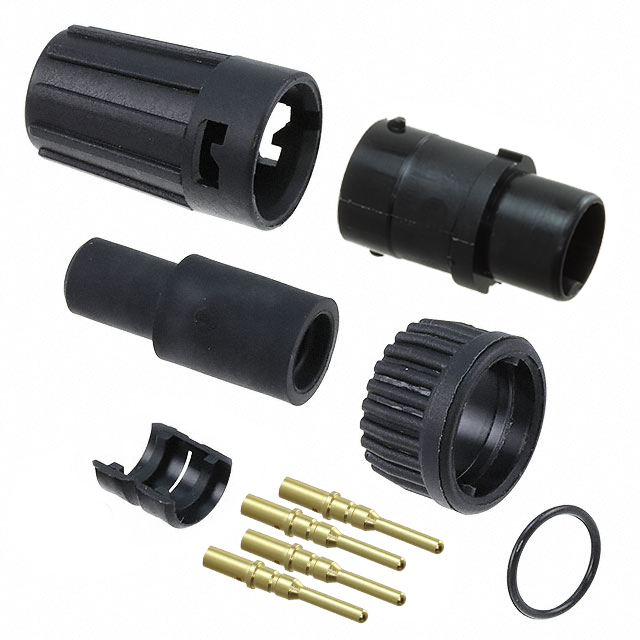

CONN PLUG MALE 4POS GOLD CRIMP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Contact Finish - Mating	Applications	Fastening Type	Mounting Type	Orientation	Primary Material	Contact Material	Color	Current Rating (Amps)	Voltage Rating	Number of Positions	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]	Termination	Connector Type	Features	Shielding	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 6380-4PG-513	-40 °C	115 °C	Weathertight	Gold	Automotive, Communication Systems, Instrumentation	Bayonet Lock	Free Hanging (In-Line)	Keyed	Plastic	Brass	Black	Varies by Wire Gauge	600 V	4	Nylon, Polyamide (PA)	0.13 in, 0.15 in	3.3 mm, 3.81 mm	Crimp	Male Pins, Plug	Backshell	Unshielded
Conxall/Switchcraft 6380-4PG-321	-40 °C	115 °C	Weathertight	Gold	Automotive, Communication Systems, Instrumentation	Bayonet Lock	Free Hanging (In-Line)	Keyed	Plastic	Brass	Black	Varies by Wire Gauge	600 V	4	Nylon, Polyamide (PA)			Crimp	Male Pins, Plug	Backshell	Unshielded	5.33 mm	5.84 mm	0.21 in	0.23 in
Conxall/Switchcraft 6380-4PG-315	-40 °C	115 °C	Weathertight	Gold	Automotive, Communication Systems, Instrumentation	Bayonet Lock	Free Hanging (In-Line)	Keyed	Plastic	Brass	Black	Varies by Wire Gauge	600 V	4	Nylon, Polyamide (PA)	0.15 in, 0.17 in	3.81 mm, 4.32 mm	Crimp	Male Pins, Plug	Backshell	Unshielded
Conxall/Switchcraft 6380-4PG-318	-40 °C	115 °C	Weathertight	Gold	Automotive, Communication Systems, Instrumentation	Bayonet Lock	Free Hanging (In-Line)	Keyed	Plastic	Brass	Black	Varies by Wire Gauge	600 V	4	Nylon, Polyamide (PA)			Crimp	Male Pins, Plug	Backshell	Unshielded					4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 6380-4PG-3DC	-40 °C	115 °C	Weathertight	Gold	Automotive, Communication Systems, Instrumentation	Bayonet Lock	Free Hanging (In-Line)	Keyed	Plastic	Brass	Black	Varies by Wire Gauge	600 V	4	Nylon, Polyamide (PA)			Crimp	Male Pins, Plug	Backshell	Unshielded
Conxall/Switchcraft 6380-4PG-522	-40 °C	115 °C	Weathertight	Gold	Automotive, Communication Systems, Instrumentation	Bayonet Lock	Free Hanging (In-Line)	Keyed	Plastic	Brass	Black	Varies by Wire Gauge	600 V	4	Nylon, Polyamide (PA)			Crimp	Male Pins, Plug	Backshell	Unshielded	5.59 mm		0.22 in	0.25 in					6.35 mm
Conxall/Switchcraft 6380-4PG-519	-40 °C	115 °C	Weathertight	Gold	Automotive, Communication Systems, Instrumentation	Bayonet Lock	Free Hanging (In-Line)	Keyed	Plastic	Brass	Black	Varies by Wire Gauge	600 V	4	Nylon, Polyamide (PA)			Crimp	Male Pins, Plug	Backshell	Unshielded	4.83 mm		0.19 in	0.21 in					5.33 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.57
		10	$ 9.51
		25	$ 8.96
		50	$ 8.73
		100	$ 8.50
		300	$ 7.58
		500	$ 7.12
		1000	$ 6.30

Description

General part information

6380-4PG Series

4 Position Circular Connector Plug, Male Pins Crimp
