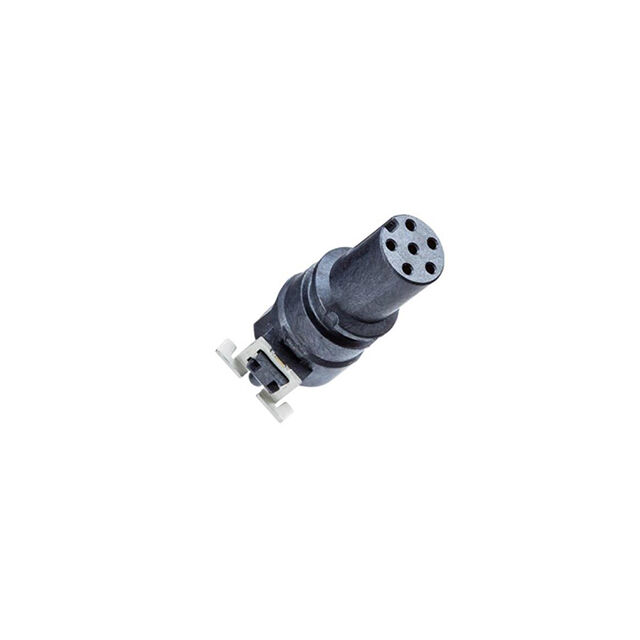

M8A-06PFFT-EE0001
ActiveAmphenol LTW
M SERIES, GUIDED M8, 1.5A, 06 PI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M8A-06PFFT-EE0001
ActiveAmphenol LTW
M SERIES, GUIDED M8, 1.5A, 06 PI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M8A-06PFFT-EE0001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Fastening Type | Push-Pull |
| Features | Board Guide, Ground |
| Insert Material | Thermoplastic |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | M8-6 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 4.82 | |
Description
General part information
M8A-06PFFT Series
6 Position Circular Connector Receptacle, Female Sockets Solder
