S2SDT-10-28-L-04.00-DR-NDX
ActiveSamtec Inc.
2.00 MM TIGER EYE DOUBLE ROW DI
Deep-Dive with AI
Search across all available documentation for this part.
S2SDT-10-28-L-04.00-DR-NDX
ActiveSamtec Inc.
2.00 MM TIGER EYE DOUBLE ROW DI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S2SDT-10-28-L-04.00-DR-NDX |
|---|---|
| Cable Termination | Crimp |
| Connector Type | Socket to Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Latch Lock, Polarizing Key |
| Length [x] | 4 " |
| Length [x] | 0.333 ft |
| Length [x] | 101.6 mm |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch - Connector | 2 mm |
| Pitch - Connector | 0.079 in |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
S2SDT-10 Series

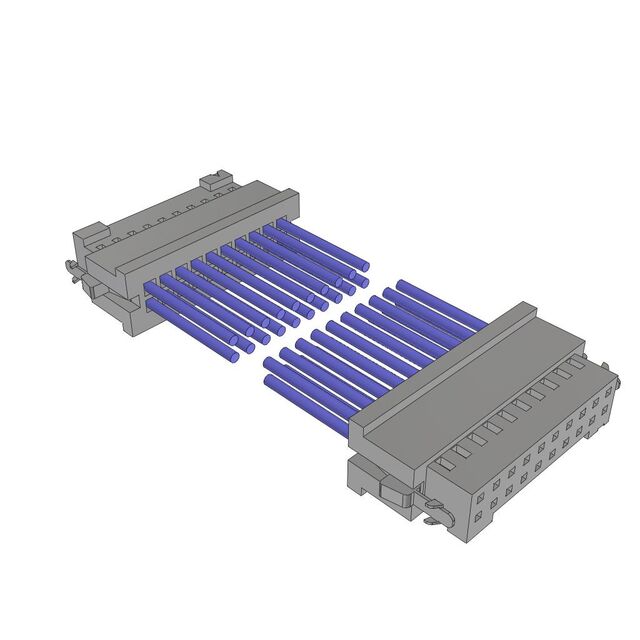

20 Position Cable Assembly Rectangular Socket to Socket 0.333' (101.60mm, 4.00")
