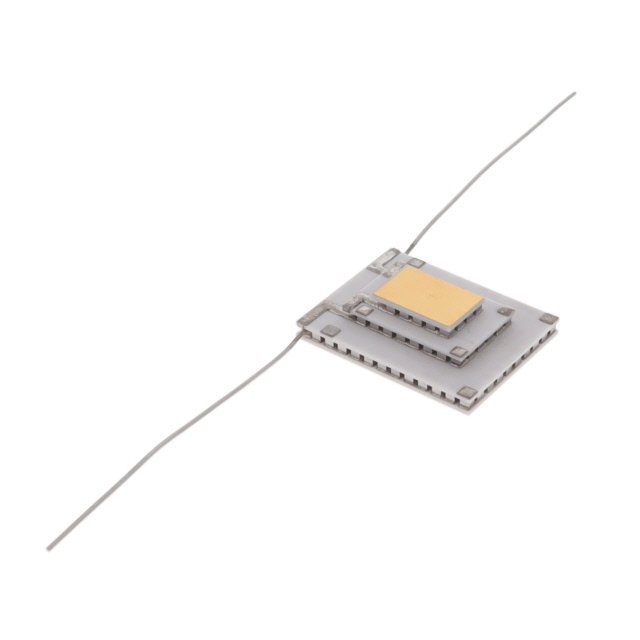

Specification	SP2402-04AB

Current - Max	5.3 A
Delta Tmax	109 °C
Features	Lead Wires, Exterior Metallization (One Side)
Height	6.73 mm
Maximum Power Dissipation (Qmax)	8.7 W
Number of Stages	3
Operating Temperature	85 °C
Resistance	1.54 Ohms
Size / Dimension Length	28.27 mm
Size / Dimension Shape	Rectangular
Size / Dimension Width	21.72 mm
Type	TEC (Thermoelectric Cooler)
Voltage - Max	8.9 V

SP2402 Series

Part	Type	Size / Dimension Shape	Size / Dimension Length	Size / Dimension Width	Current - Max	Resistance	Delta Tmax	Maximum Power Dissipation (Qmax)	Features	Height	Voltage - Max	Number of Stages	Operating Temperature
Marlow Industries, Inc. SP2402-01AB	TEC (Thermoelectric Cooler)	Rectangular	28.27 mm	21.72 mm	5.3 A	1.54 Ohms	109 °C	8.7 W	Exterior Metallization (One Side) Lead Wires	6.73 mm	8.9 V	3	85 °C
Marlow Industries, Inc. SP2402-02AB	TEC (Thermoelectric Cooler)	Rectangular	28.27 mm	21.72 mm	5.3 A	1.54 Ohms	109 °C	8.7 W	Exterior Metallization (One Side) Lead Wires	6.73 mm	8.9 V	3	85 °C
Marlow Industries, Inc. SP2402-03AB	TEC (Thermoelectric Cooler)	Rectangular	28.27 mm	21.72 mm	5.3 A	1.54 Ohms	109 °C	8.7 W	Lead Wires	6.73 mm	8.9 V	3	85 °C
Marlow Industries, Inc. SP2402-04AB	TEC (Thermoelectric Cooler)	Rectangular	28.27 mm	21.72 mm	5.3 A	1.54 Ohms	109 °C	8.7 W	Exterior Metallization (One Side) Lead Wires	6.73 mm	8.9 V	3	85 °C
