971-009-030R121

Active

MH Connectors

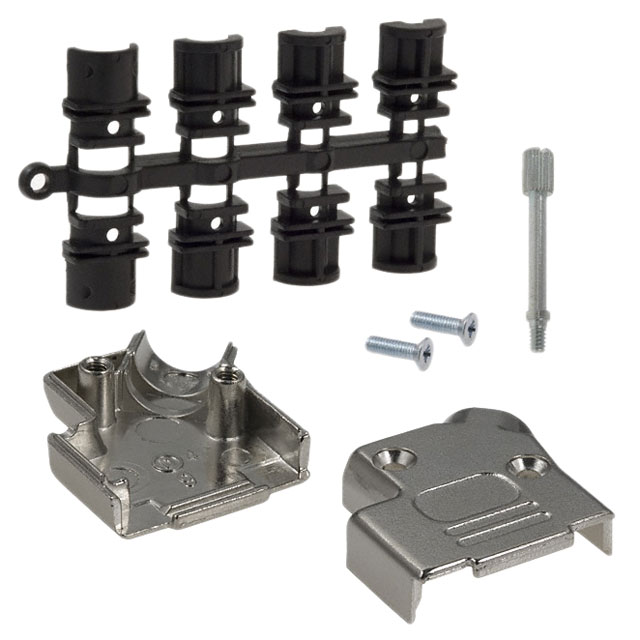

D SUB BACKSHELL, ARMOR 971 SERIES, DE, 45°, ZINC ALLOY BODY

Search across all available documentation for this part.

Active

MH Connectors

D SUB BACKSHELL, ARMOR 971 SERIES, DE, 45°, ZINC ALLOY BODY

Technical Specifications

Parameters and characteristics for this part

Part	Features	Accessory Type	Cable Type	Material	Cable Exit	Primary Material	Compatible D-Sub Size	Color	Plating	Number of Positions	Shielding	Compatible Shell Size	Hardware
MH Connectors 971-009-040R011	Mating Screws 4-40	Two Piece Backshell	Round	Metal Zinc Alloy	45 °	Metal	9pos HD15pos	Black	Copper	9	Shielded	E	Assembly Hardware Grommets
MH Connectors 971-009-030R121	Mating Screws 4-40	Two Piece Backshell	Round	Metal Zinc Alloy	45 °	Metal	9pos HD15pos	Silver	Nickel over Copper	9	Shielded	E	Assembly Hardware Grommets
MH Connectors 971-009-020R121	Mating Screws 4-40	Two Piece Backshell	Round	Metallized Plastic	45 °	Plastic	9pos HD15pos	Silver	Nickel over Copper	9	Shielded	E	Assembly Hardware Grommets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Two Piece Backshell Connector Silver 45° Shielded
