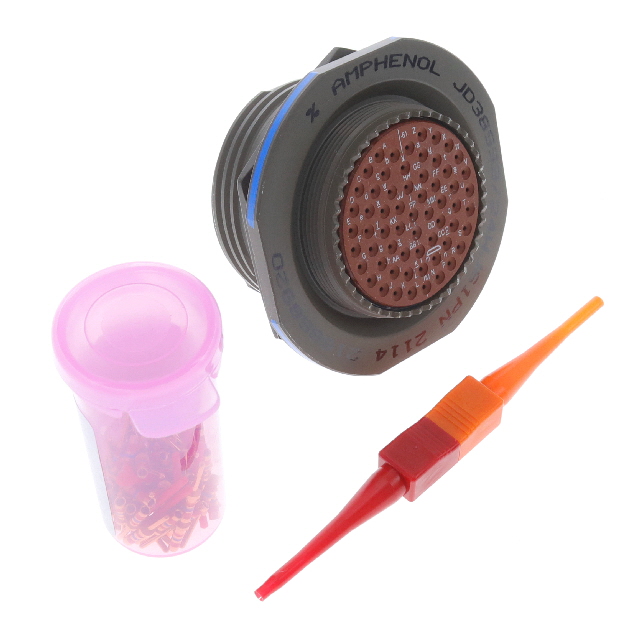

D38999/24WJ61PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 61POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24WJ61PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 61POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24WJ61PN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	61
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	61
Shell Size - Insert [Min]	25
Shell Size, MIL	J
Shielding	Shielded
Termination	Crimp

D38999/24WJ Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Shielding	Grade	Mounting Feature	Connector Type	Contact Size	Note	Shell Material	Shell Size, MIL	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Shape	Shell Finish	Housing Color	Type	Orientation	Ingress Protection	Qualification	Contact Size	Color	Contact Material	Contact Finish - Mating	Primary Material	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert
Amphenol Aerospace Operations D38999/24WJ37AN	-65 ░C	347 °F	Crimp	Shielded	Military	Bulkhead - Front Side Nut	Receptacle Housing	16	Contacts Not Included	Aluminum	J	37	37	25	Circular	Cadmium	Olive Drab	For Male Pins	N	Environment Resistant	MIL-DTL-38999 Series III
Amphenol Aerospace Operations D38999/24WJ4HA-LC	-65 ░C	347 °F	Crimp	Shielded	Military	Bulkhead - Front Side Nut	Receptacle Housing		Contacts Not Included	Aluminum	J	56	4	25	Circular	Cadmium	Olive Drab	For Male Pins	A	Environment Resistant	MIL-DTL-38999 Series III	16 (8) 20 (48)
Amphenol Aerospace Operations D38999/24WJ35JN	-65 ░C	347 °F		Shielded	Military	Bulkhead - Front Side Nut	Receptacle Female Sockets			Aluminum	J	128				Olive Drab Cadmium			N	Environment Resistant	MIL-DTL-38999 Series III		Olive Drab	Copper Alloy	Gold	Metal	Crimp	2.54 çm	100 çin	Aerospace Aviation Military
Amphenol Aerospace Operations D38999/24WJ61S	-65 ░C	347 °F		Shielded	Military	Bulkhead - Front Side Nut	Receptacle Female Sockets			Aluminum	J	61	61	25		Olive Drab Cadmium			N	Environment Resistant	MIL-DTL-38999 Series III		Olive Drab	Copper Alloy	Gold	Metal	Crimp	1.27 µm	50 µin	Aerospace Aviation Military
Amphenol Aerospace Operations D38999/24WJ19PA-LC	-65 ░C	347 °F	Crimp	Shielded	Military	Bulkhead - Front Side Nut	Receptacle Housing	12	Contacts Not Included	Aluminum	J	19	19	25	Circular	Cadmium	Olive Drab	For Male Pins	A	Environment Resistant	MIL-DTL-38999 Series III
Amphenol Aerospace Operations D38999/24WJ7PCLC	-65 ░C	347 °F	Crimp	Shielded	Military	Bulkhead - Front Side Nut	Receptacle Housing		Contacts Not Included	Aluminum	J	99			Circular	Cadmium	Olive Drab	For Male Pins	C	Environment Resistant	MIL-DTL-38999 Series III	22D (97) 8 Twinax (2)									2	97	25-7
Amphenol Aerospace Operations D38999/24WJ61PN	-65 ░C	347 °F		Shielded	Military	Bulkhead - Front Side Nut	Male Pins Receptacle			Aluminum	J	61	61	25		Olive Drab Cadmium			N	Environment Resistant	MIL-DTL-38999 Series III		Olive Drab	Copper Alloy	Gold	Metal	Crimp	1.27 µm	50 µin	Aerospace Aviation Marine Military
Amphenol Aerospace Operations D38999/24WJ37HN	-65 ░C	347 °F		Shielded	Military	Bulkhead - Front Side Nut	Male Pins Receptacle			Aluminum	J	37	37	25		Olive Drab Cadmium			N	Environment Resistant	MIL-DTL-38999 Series III		Olive Drab	Copper Alloy	Gold	Metal	Crimp	2.54 çm	100 çin	Aviation Marine Military
Amphenol Aerospace Operations D38999/24WJ11SN-LC	-65 ░C	347 °F	Crimp	Shielded	Military	Bulkhead - Front Side Nut	Receptacle Housing	10 20	Contacts Not Included	Aluminum	J	11			Circular	Cadmium	Olive Drab	For Female Sockets	N	Environment Resistant	MIL-DTL-38999 Series III												25-11
Amphenol Aerospace Operations D38999/24WJ24JN-LC	-65 ░C	347 °F	Crimp	Shielded	Military	Bulkhead - Front Side Nut	Receptacle Housing	12 16	Contacts Not Included	Aluminum	J	24	24	25	Circular	Cadmium	Olive Drab	For Female Sockets	N	Environment Resistant	MIL-DTL-38999 Series III

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 158.49
		10	$ 128.78
		25	$ 108.44
		50	$ 93.66
		100	$ 79.25
	Bulk	1	$ 301.62
		10	$ 273.28

Description

General part information

D38999/24WJ Series

61 Position Circular Connector Receptacle, Male Pins Crimp
