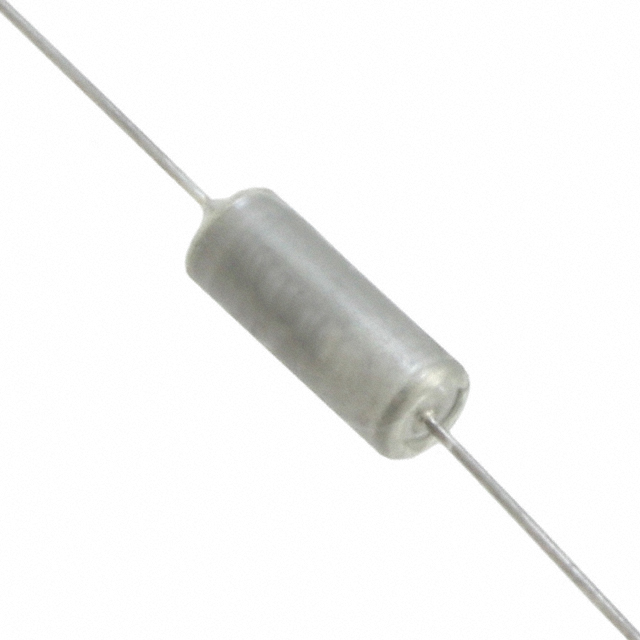

M39003/01-2368

Active

KEMET

CAP, 4.7UF, 50V, TANT, AXIAL

Search across all available documentation for this part.

Active

KEMET

CAP, 4.7UF, 50V, TANT, AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	M39003/01-2368

Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	2.5 Ohm
Failure Rate	M (1%)
Features	High Reliability
Grade	Military
Manufacturer Size Code	B
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Qualification	MIL-PRF-39003/1
Size / Dimension [diameter]	0.185 in
Size / Dimension [diameter]	4.7 mm
Size / Dimension [x]	0.61 in
Size / Dimension [x]	15.49 mm
Tolerance	10 %
Type	Hermetically Sealed
Voltage - Rated	50 VDC

Part	ESR (Equivalent Series Resistance)	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Grade	Type	Qualification	Voltage - Rated	Tolerance	Manufacturer Size Code	Capacitance	Failure Rate	Package / Case	Size / Dimension [z]	Size / Dimension [z]
KEMET M39003/01-6053	2 Ohms	Through Hole	High Reliability	-55 °C	125 °C	0.185 in	0.61 in	4.7 mm	15.49 mm	Military	Hermetically Sealed	MIL-PRF-39003/1	15 V	10 %	B	22 µF	B (0.1%)	Axial
KEMET M39003/01-6078	2.9 Ohm	Through Hole	High Reliability	-55 °C	125 °C	0.185 in	0.61 in	4.7 mm	15.49 mm	Military	Hermetically Sealed	MIL-PRF-39003/1	20 V	10 %	B	10 µF	B (0.1%)	Axial
KEMET M39003/01-2854	1.6 Ohm	Through Hole	High Reliability	-55 °C	125 °C	0.289 in		7.34 mm		Military	Hermetically Sealed	MIL-PRF-39003/1	50 VDC	10 %		10 µF	R (0.01%)	Axial	20.88 mm	0.822 in
KEMET M39003/01-2368	2.5 Ohm	Through Hole	High Reliability	-55 °C	125 °C	0.185 in	0.61 in	4.7 mm	15.49 mm	Military	Hermetically Sealed	MIL-PRF-39003/1	50 VDC	10 %	B	4.7 µF	M (1%)	Axial
KEMET M39003/01-2289	2.3 Ohm	Through Hole	High Reliability	-55 °C	125 °C	0.185 in	0.61 in	4.7 mm	15.49 mm	Military	Hermetically Sealed	MIL-PRF-39003/1	20 V	10 %	B	15 µF	M (1%)	Axial
KEMET M39003/01-7108	2.5 Ohm	Through Hole	High Reliability	-55 °C	125 °C	0.185 in	0.61 in	4.7 mm	15.49 mm	Military	Hermetically Sealed	MIL-PRF-39003/1	35 V	10 %	B	6.8 ÁF	C (0.01%)	Axial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.7 µF Hermetically Sealed Tantalum Capacitors 50 V Axial 2.5Ohm
