Part	Package / Case	Input	Main Purpose	Mounting Type	Input Ratio	Output Ratio	PLL	Differential Output	Differential Input	Number of Circuits	Frequency - Max	Package Width	Package Name	Package Length	Output	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Supplied Contents	Function	Primary Attributes	Contents	Utilized IC / Part	Type
Skyworks Solutions Inc. SI52204-A01BGMR	32-VFQFN Exposed Pad	Clock Crystal	Clock Generator PCI Express (PCIe)	Surface Mount	1	4	Yes	Yes	No	1	100 MHz	5 mm	32-QFN	5 mm	HCSL LVCMOS	1.8 V	1.5 V	-40 °C	85 °C
Skyworks Solutions Inc. SI52204-A01BGM	32-VFQFN Exposed Pad	Clock Crystal	Clock Generator PCI Express (PCIe)	Surface Mount	1	4	Yes	Yes	No	1	100 MHz	5 mm	32-QFN	5 mm	HCSL LVCMOS	1.8 V	1.5 V	-40 °C	85 °C

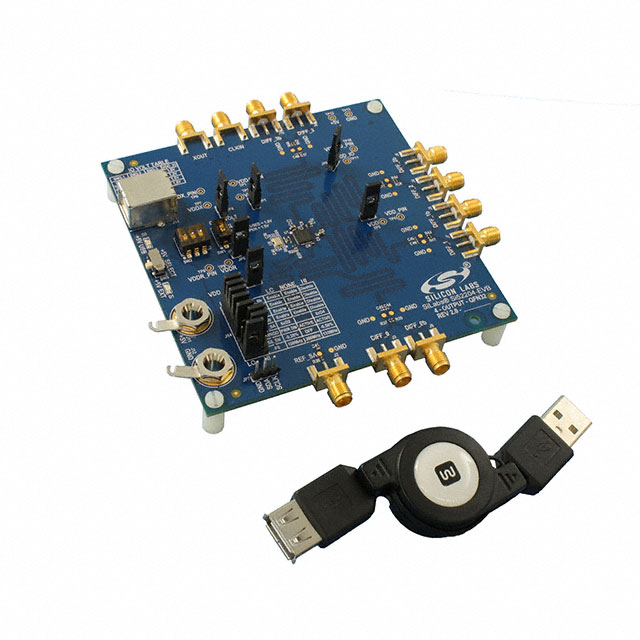

Skyworks Solutions Inc. SI52204-EVB																				Board(s)	Clock Generator	4-Channel (Quad)	Board	Si522xx	Timing
Skyworks Solutions Inc. SI52204-A02BGMR	32-VFQFN Exposed Pad	Clock Crystal	Clock Generator PCI Express (PCIe)	Surface Mount	1	4	Yes	Yes	No	1	100 MHz	5 mm	32-QFN	5 mm	HCSL LVCMOS	1.8 V	1.5 V	-40 °C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
