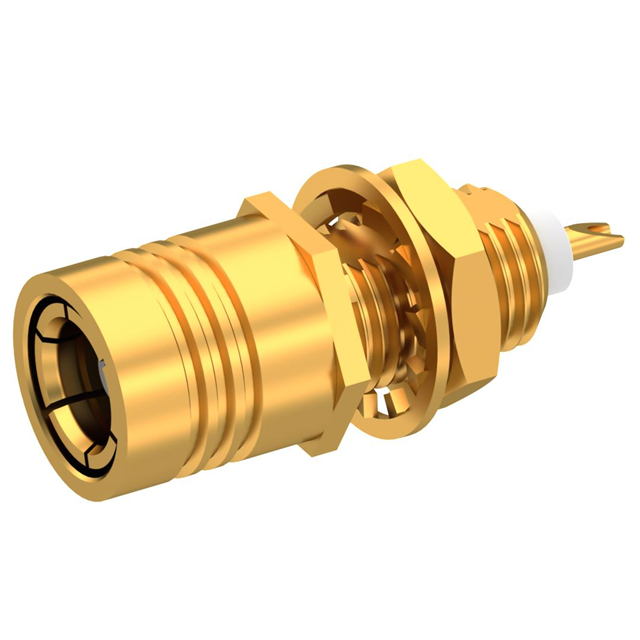

R115556000

Active

Radiall USA, Inc.

SMB / STRAIGHT BULKHEAD PLUG REC

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB / STRAIGHT BULKHEAD PLUG REC

Technical Specifications

Parameters and characteristics for this part

Specification	R115556000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Bronze, Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Body Finish	Center Contact Plating	Mounting Feature	Connector Style	Dielectric Material	Mating Cycles	Features	Fastening Type	Number of Ports	Frequency - Max [Max]	Body Material	Connector Type	Center Contact Material	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Shield Termination	Housing Color
Radiall USA, Inc. R115556000	Gold	Gold	Bulkhead - Rear Side Nut	SMB	Polytetrafluoroethylene (PTFE)	500	Extended Insulation	Snap-On	1	4 GHz	Brass	Female Socket Plug	Beryllium Copper Bronze	Solder Cup	-65 ░C	165 °C	50 Ohms	Solder	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 44.25

General part information

SMB Connector Plug, Female Socket 50 Ohms Panel Mount Solder Cup
